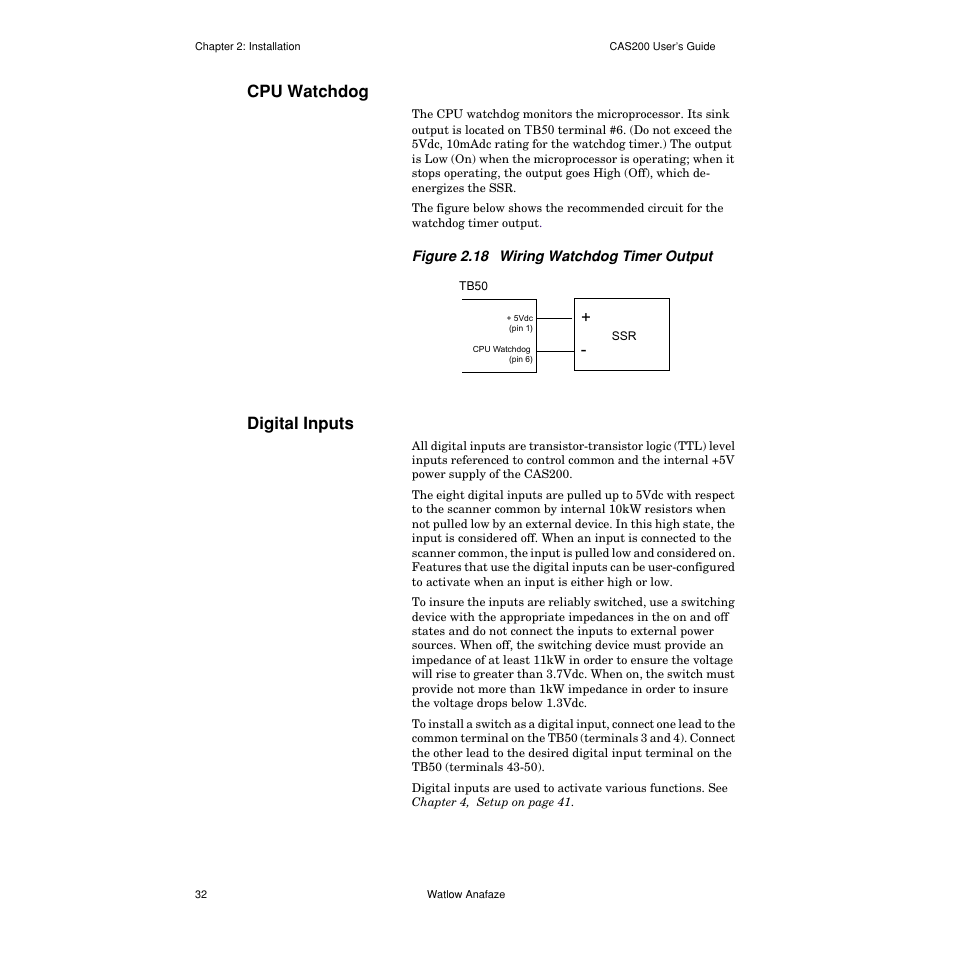

Cpu watchdog, Digital inputs, Cpu watchdog 32 – Watlow CAS200 User Manual
Page 44: Digital inputs 32, Figure 2.18— wiring watchdog timer output 32
