IBS-19A Series Medical Panel PC

Page 63

Step 4:

Remove the old HDD from the HDD slot (Figure 5-2).

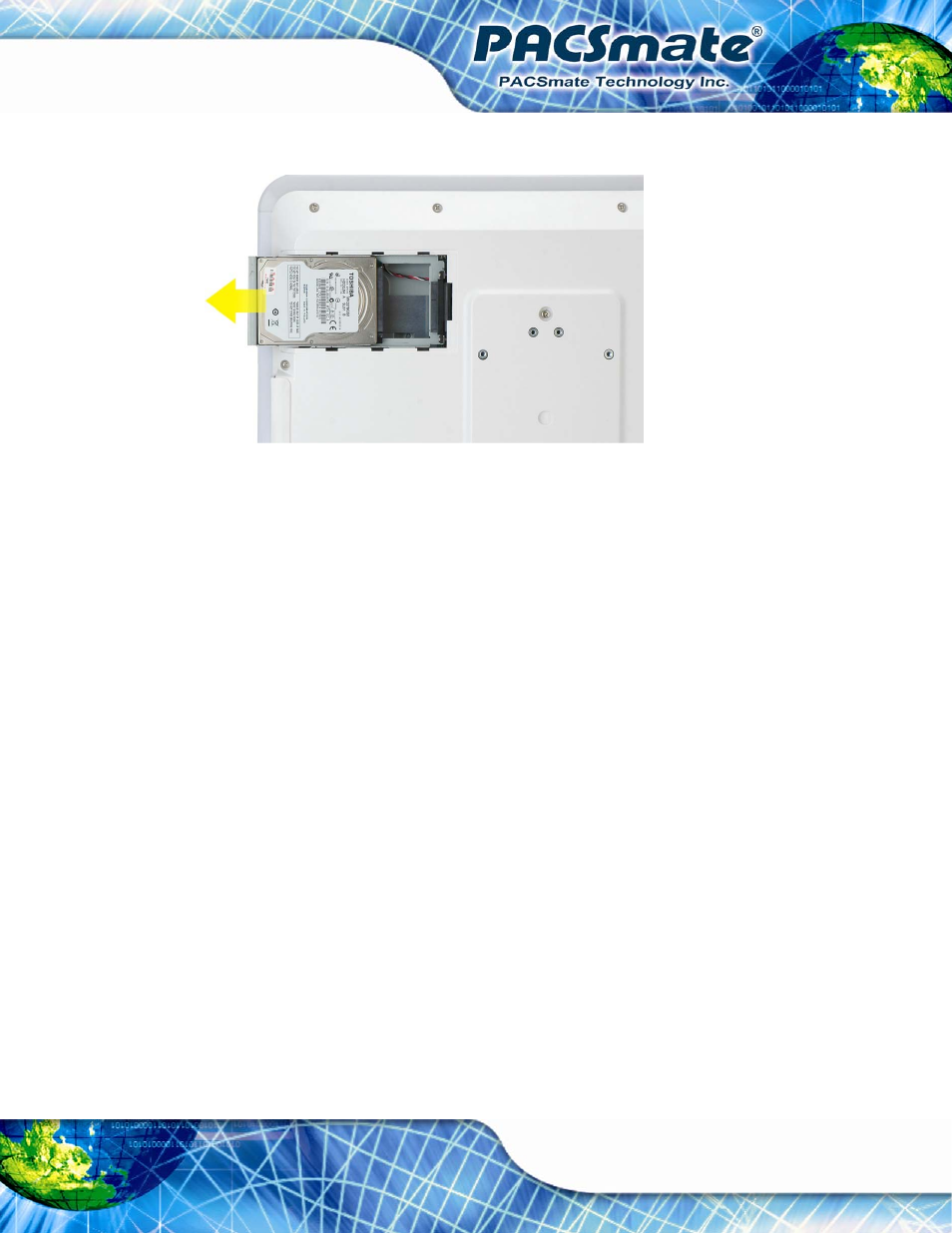

Figure 5-2: HDD Removal

Step 5:

Line up the new HDD with the SATA connector.

Step 6:

Insert the HDD into SATA connector until it is securely in place.

Step 7:

Replace the HDD cover and secure using one (1) retention screw.
