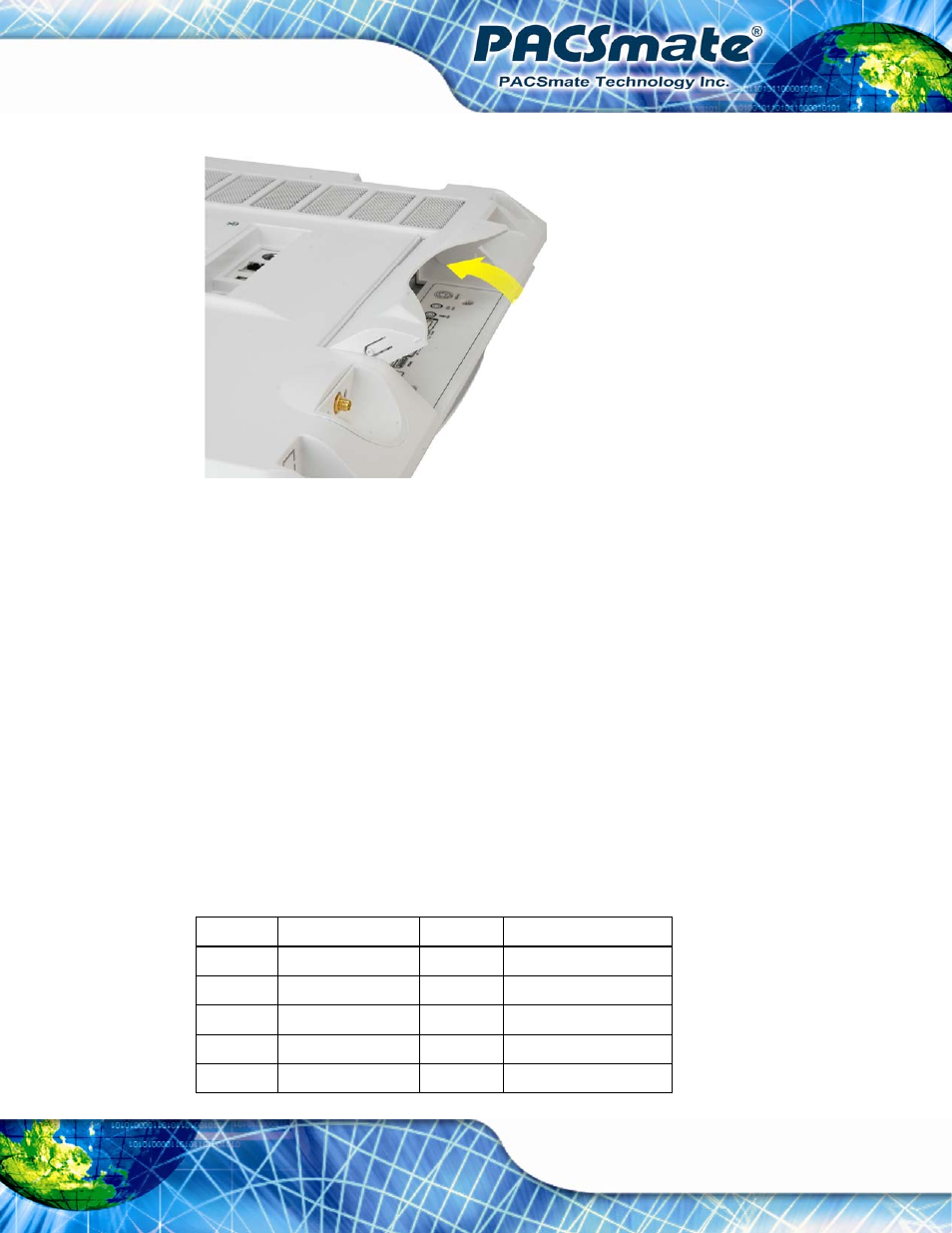

Figure 3-5: Open the I/O Cover

3.5.2 Audio Connectors

The audio jacks connect to external audio devices.

Microphone (Pink): Connects a microphone.

Line Out port (Green): Connects to a headphone or a speaker. With

multi-channel configurations, this port can also connect to front speakers.

3.5.3 HDMI Connector

The HDMI connector can connect to an HDMI device. The pinouts of the HDMI connector

are shown below.

Pin Description Pin Description

1 HDMI_DATA2

2 GND

3 HDMI_DATA2#

4 HDMI_DATA1

5 GND

6 HDMI_DATA1#

7 HDMI_DATA0

8 GND

9 HDMI_DATA0#

10 HDMI_CLK
