3.7.2 Stand Mounting

To mount the IBS-19A Series using the stand mounting kit, please follow the steps below.

Step 1:

Locate the screw holes on the rear of the IBS-19A Series. This is where the

bracket will be attached.

Step 2:

Align the bracket with the screw holes.

Step 3:

To secure the bracket to the IBS-19A Series insert the retention screws into the

screw holes and tighten them.

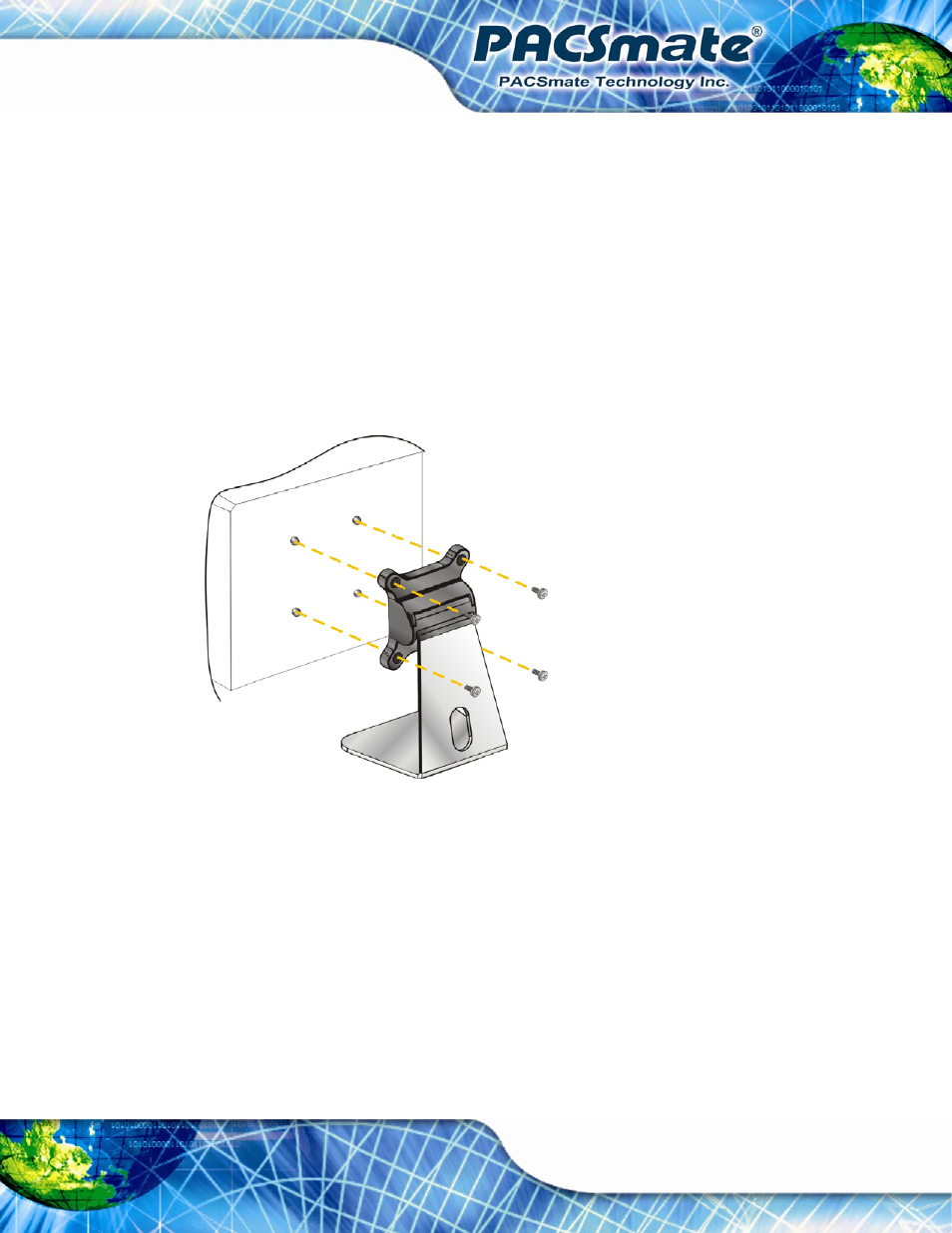

Figure 3-20: Stand Mounting

3.7.3 Wall Mounting

To mount the flat panel PC onto the wall, please follow the steps below.

Step 4:

Select the location on the wall for the wall-mounting bracket.

Step 5:

Carefully mark the locations of the four screw holes in the bracket on the wall.

Step 6:

Drill four pilot holes at the marked locations on the wall for the bracket retention

screws.
