IBS-19A Series Medical Panel PC

Page 36

3.5 I/O Panel Connectors

The bottom panel and rear panel of the IBS-19A Series contain I/O connectors, switches

and a reset button. These connector locations can be found in Section 1.4.4. Detailed

descriptions of the connectors and cabling can be found in the subsections below.

3.5.1 Access the Bottom I/O Interface

The I/O interface on the bottom panel is protected by a plastic cover. To access the I/O

interface, follow the steps below to open the cover.

Step 1:

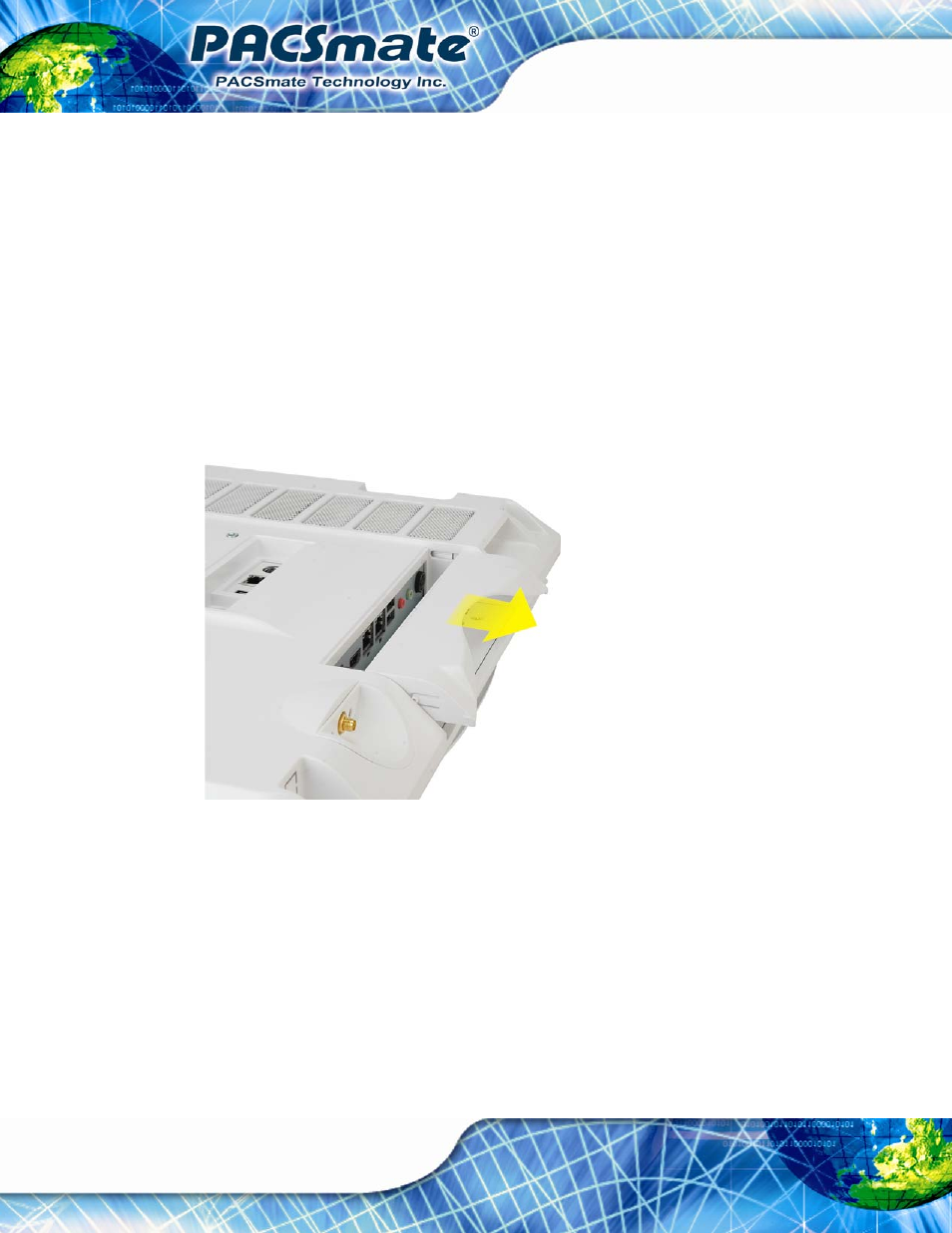

Pull the cover downward as shown in Figure 3-4.

Figure 3-4: Pull Down the I/O Cover

Step 2:

Open the cover as shown in Figure 3-5.
