IBS-19A Series Medical Panel PC

Page 50

Step 7:

Align the wall-mounting bracket screw holes with the pilot holes.

Step 8:

Secure the mounting-bracket to the wall by inserting the retention screws into

the four pilot holes and tightening them (Figure 3-21).

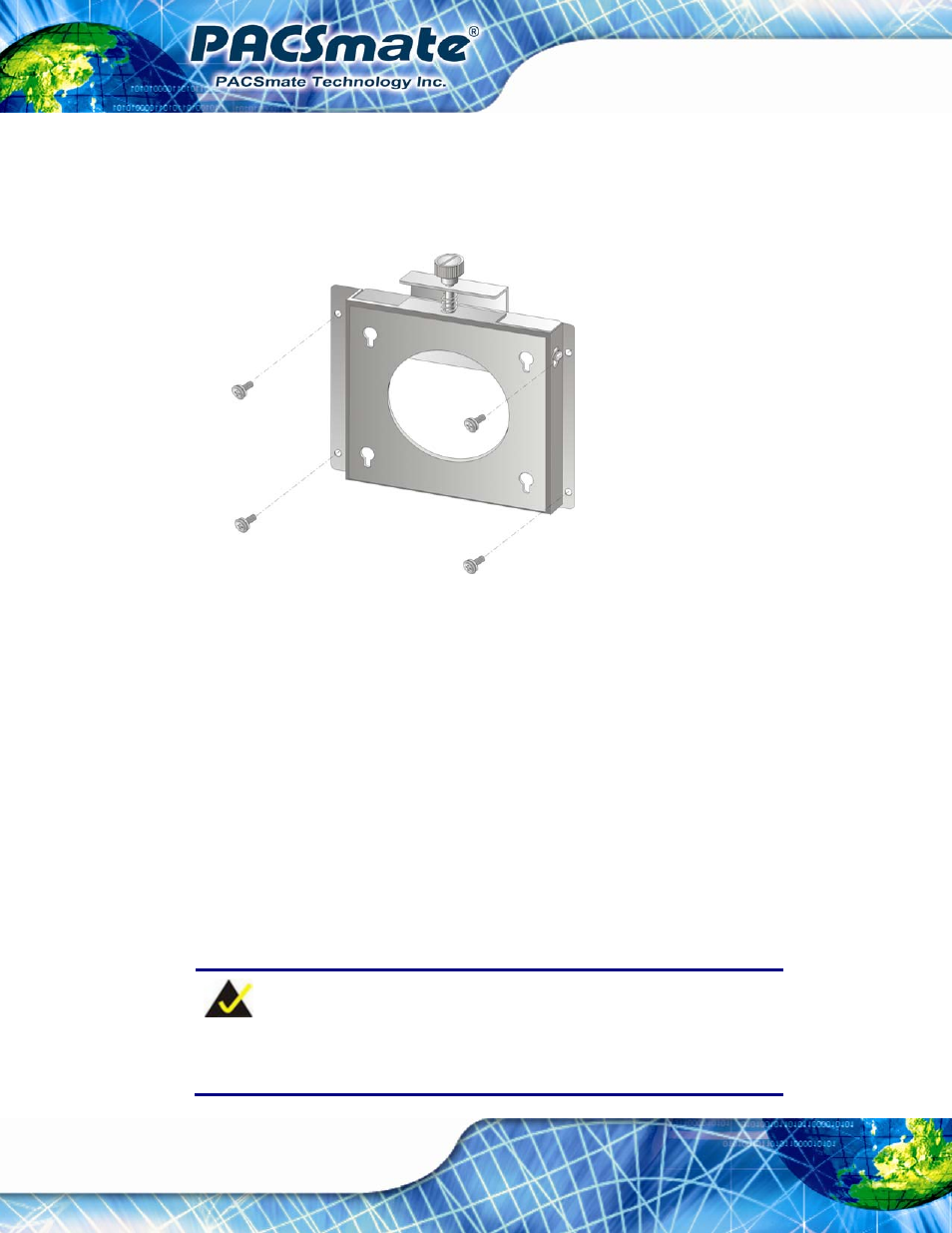

Figure 3-21: Wall-mounting Bracket

Step 9:

Insert the four monitor mounting screws provided in the wall mounting kit into the

four screw holes on the real panel of the flat panel PC and tighten until the screw

shank is secured against the rear panel (Figure 3-22).

Step 10:

Align the mounting screws on the monitor rear panel with the mounting holes on

the bracket.

Step 11:

Carefully insert the screws through the holes and gently pull the monitor

downwards until the monitor rests securely in the slotted holes (Figure 3-22).

Ensure that all four of the mounting screws fit snuggly into their respective

slotted holes.

NOTE:

In the diagram below the bracket is already installed on the wall.
