IBS-19A Series Medical Panel PC

Page 44

Step 2:

Insert the serial connector

. Insert the DB-9 connector of a serial device into

the DB-9 connector on the bottom panel. See Figure 3-15.

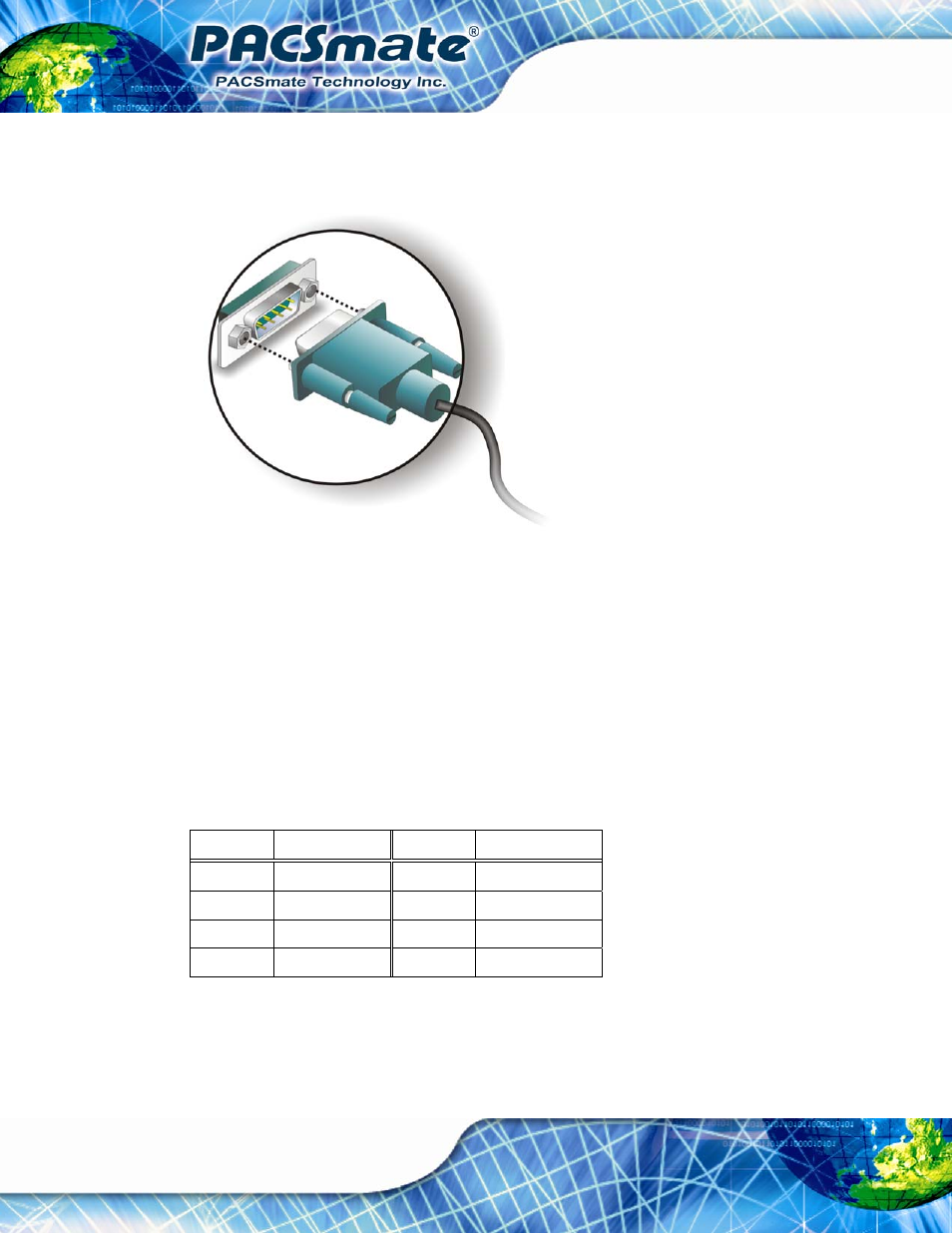

Figure 3-15: Serial Device Connector

Step 3:

Secure the connector

. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

3.5.9 USB Connectors

The USB ports are for attaching USB peripheral devices to the system. The pinouts of the

USB port is shown below.

Pin Description

1 VCC

5 VCC

2 DATA- 6 DATA-

3 DATA+ 7 DATA+

4 GROUND

8 GROUND

Table 3-7: USB Port Pinouts

To install a USB device, follow the steps below.
