IBS-19A Series Medical Panel PC
Page 23
o 1 x Audio mic-in connector
o 1 x Audio line-out connector
o 1 x 9 V ~ 28 V DC In connector
o 1 x Phone jack for handset
o 1 x AT/ATX power mode switch
o 1 x Reset button
The external I/O interface connector panels are shown in Figure 1-6 and Figure 1-7.

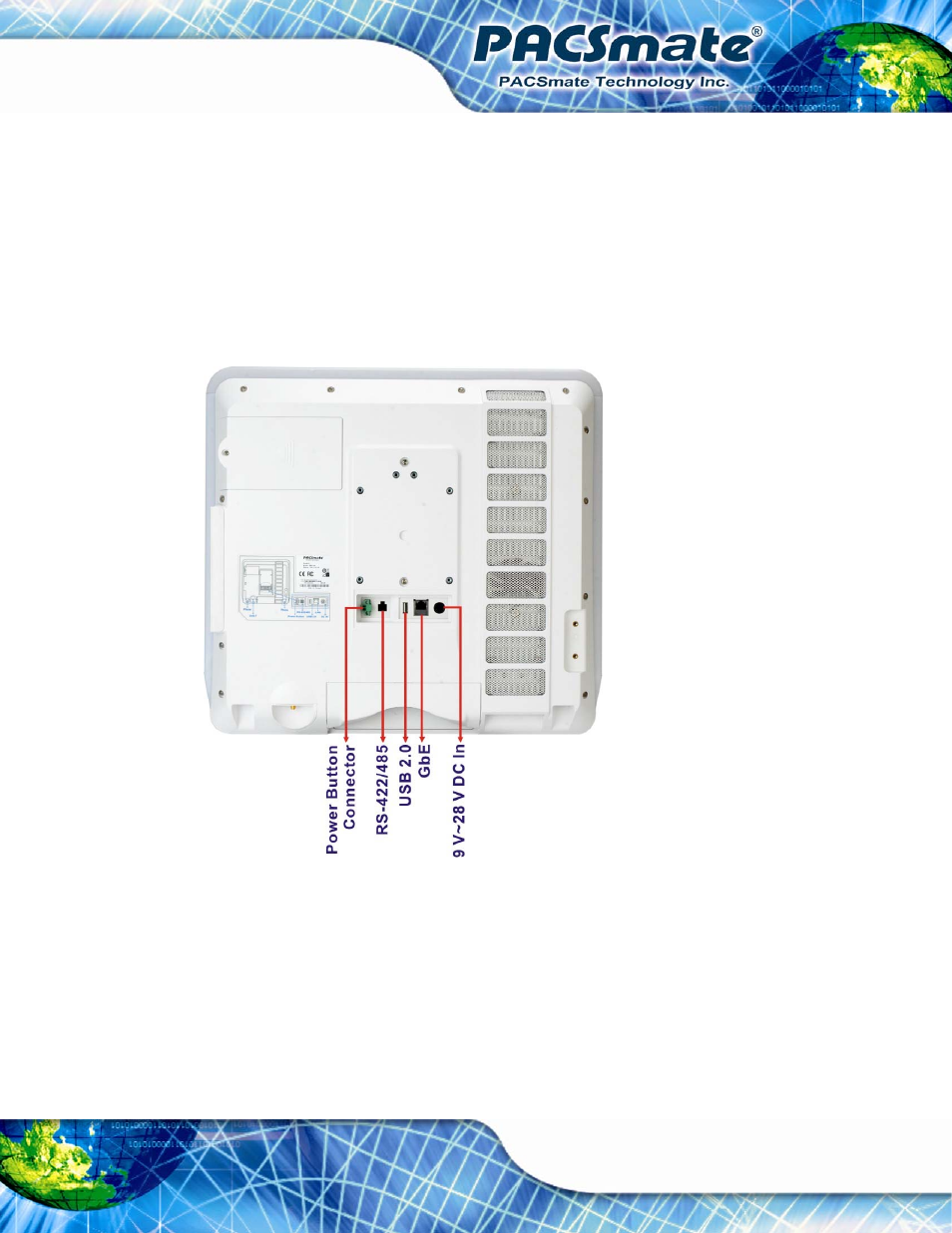

Figure 1-6: I/O Interface Connector Panel (Rear)
