Page 43: Table 3-6: db-9 rs-232 serial port pinouts, Ibs-19a series medical panel pc page 43

IBS-19A Series Medical Panel PC

Page 43

Pin

RS-422

RS-485

5 --

6 --

7 --

8 --

9 --

Table 3-5: DB-9 RS-422/485 Serial Port Pinouts

3.5.8 RS-232 Serial Port

A RS-232 serial port device can be connected to the DB-9 RS-232 serial port on the

bottom panel. The pinouts of the DB-9 RS-232 serial port is shown below.

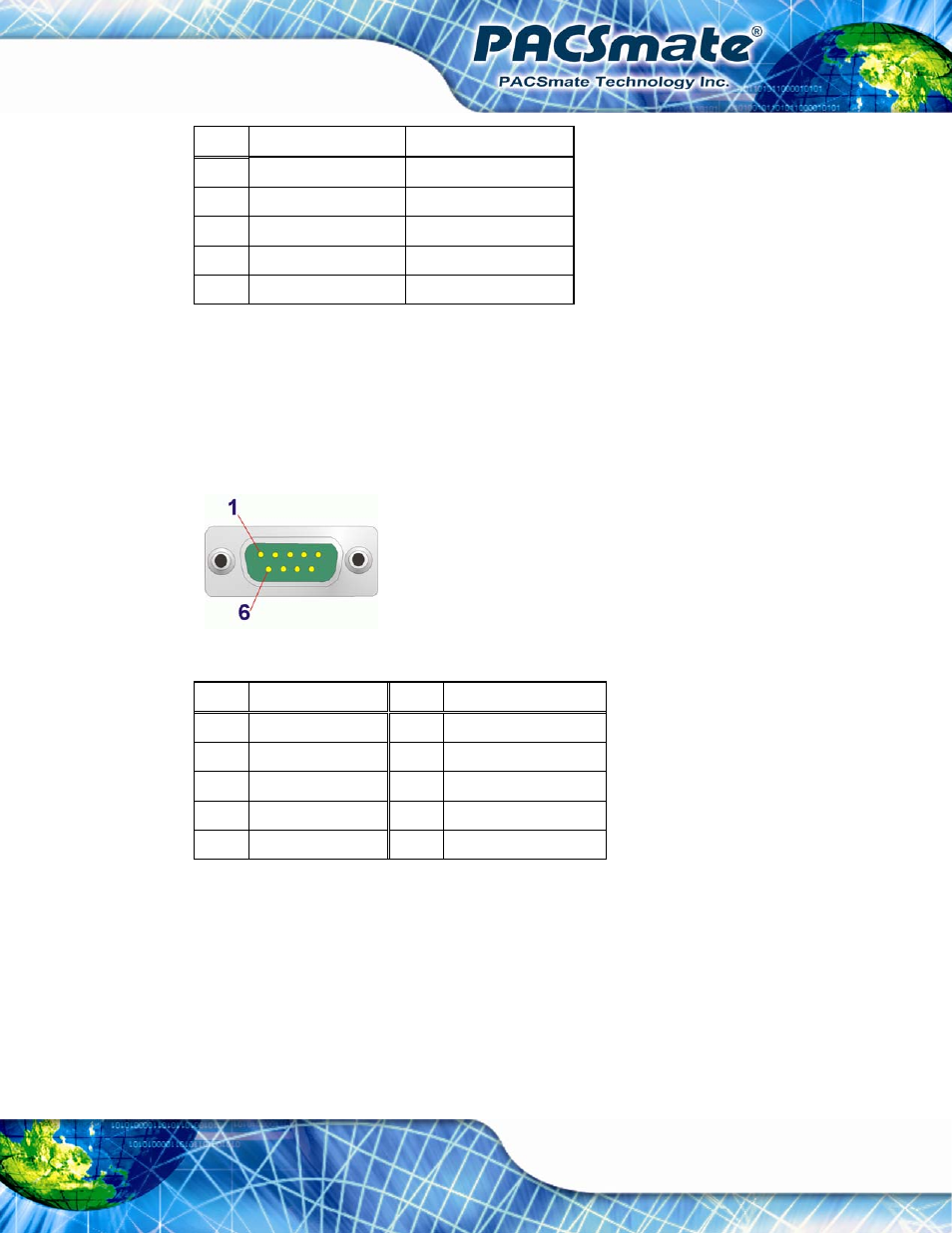

Figure 3-14: DB-9 RS-232 Serial Port

Pin Description

1 NDCD1

6 NDSR1

2 NRXD1

7 NRTS1

3. NTX1

8 NCTS1

4. NDTR1

9 COM_RI1

5 GND

Table 3-6: DB-9 RS-232 Serial Port Pinouts

To install the RS-232 devices, follow the steps below.

Step 1:

Locate the DB-9 connector

. The location of the DB-9 connector is shown in
