IBS-19A Series Medical Panel PC

Page 45

Step 1:

Located the USB connectors

. The locations of the USB connectors are shown

in Section 1.4.4.

Step 2:

Align the connectors.

Align the USB device connector with one of the

connectors on the bottom panel. See Figure 3-16.

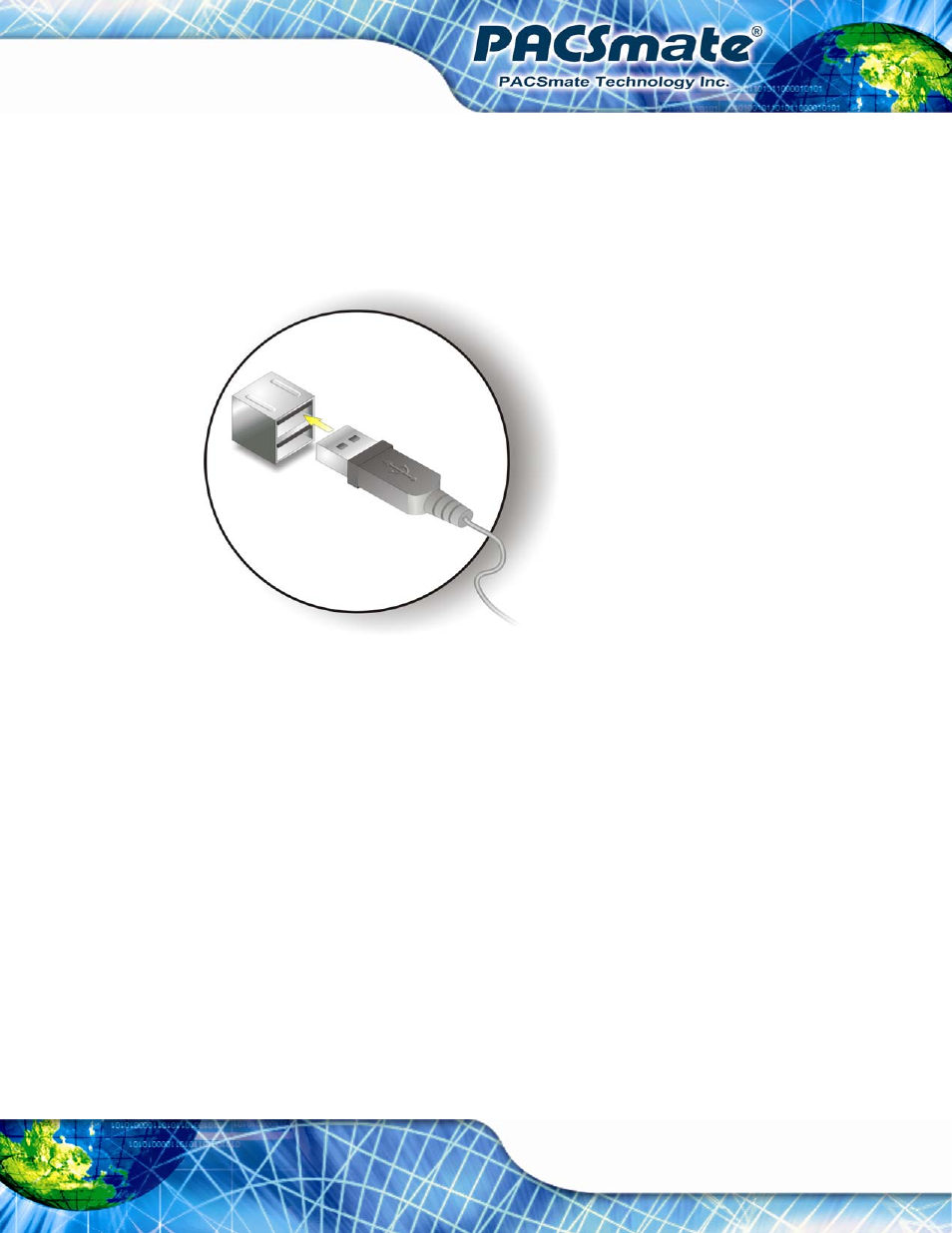

Figure 3-16: USB Device Connection

Step 3:

Insert the device connector.

Once aligned, gently insert the USB device

connector into the onboard connector.

3.6 AT/ATX Mode Selection

AT and ATX power modes can both be used on the IBS-19A Series. The selection is

made through an AT/ATX switch on bottom panel (Figure 3-17). To select AT mode or

ATX mode, follow the steps below.

Step 1:

Locate the AT/ATX switch on the bottom panel (Figure 3-17).
