D.3 IEI LED Light Bar Display Simulator

To configure the LED light bars using IEI LED Light Bar Display Simulator, please follow

the steps below:

Step 1:

Make sure LED Bar driver is properly installed. See Section D.2.1.

Step 2:

Double click the IBS-19A LED Simulator icon on the desktop to launch the IEI

LED Light Bar Display Simulator.

Step 3:

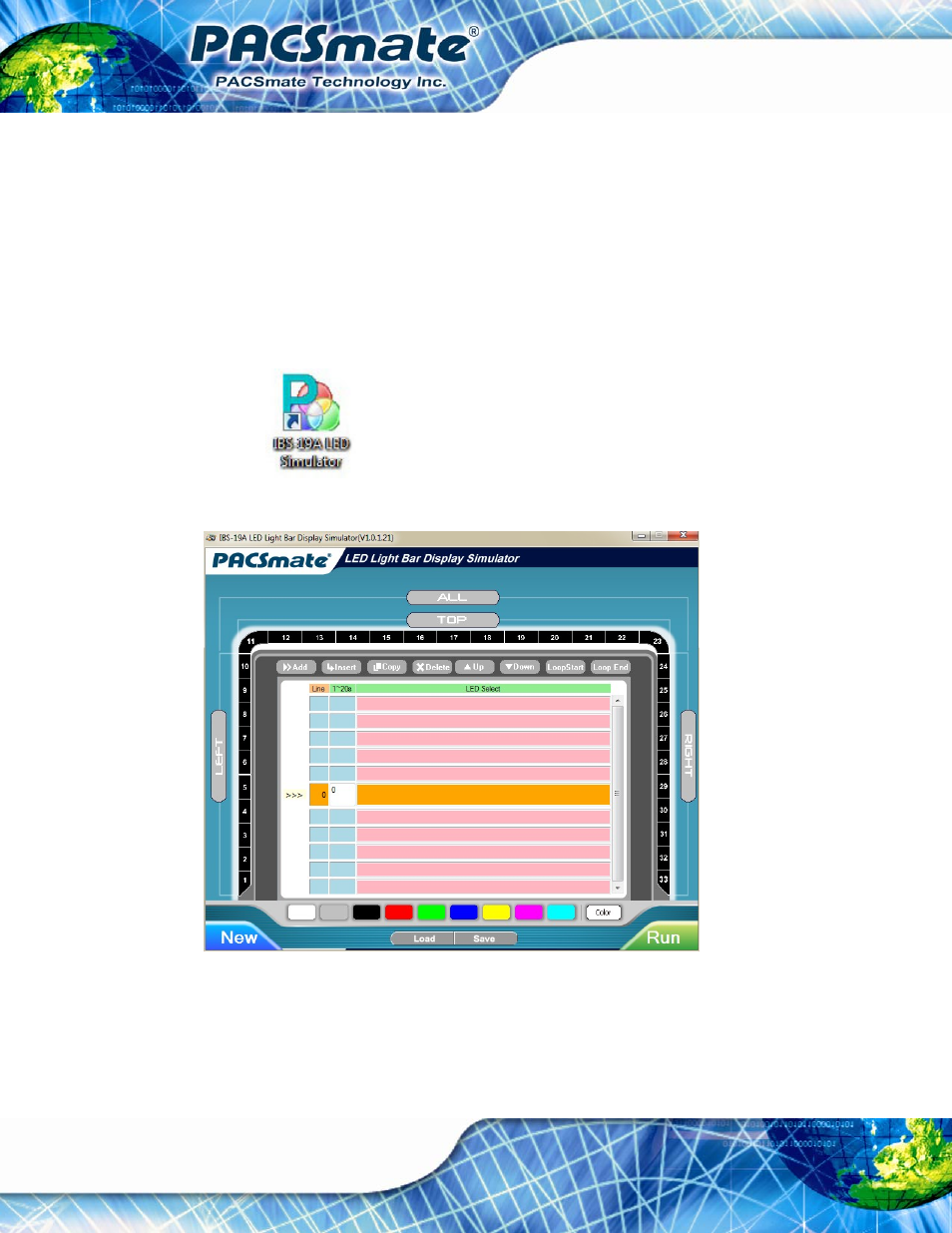

The simulator interface is shown in Figure D-11.

Figure D-11: IEI LED Light Bar Display Simulator

The following table shows the description of each function buttons of IEI LED Light Bar

Display Simulator.
