IBS-19A Series Medical Panel PC

Page 48

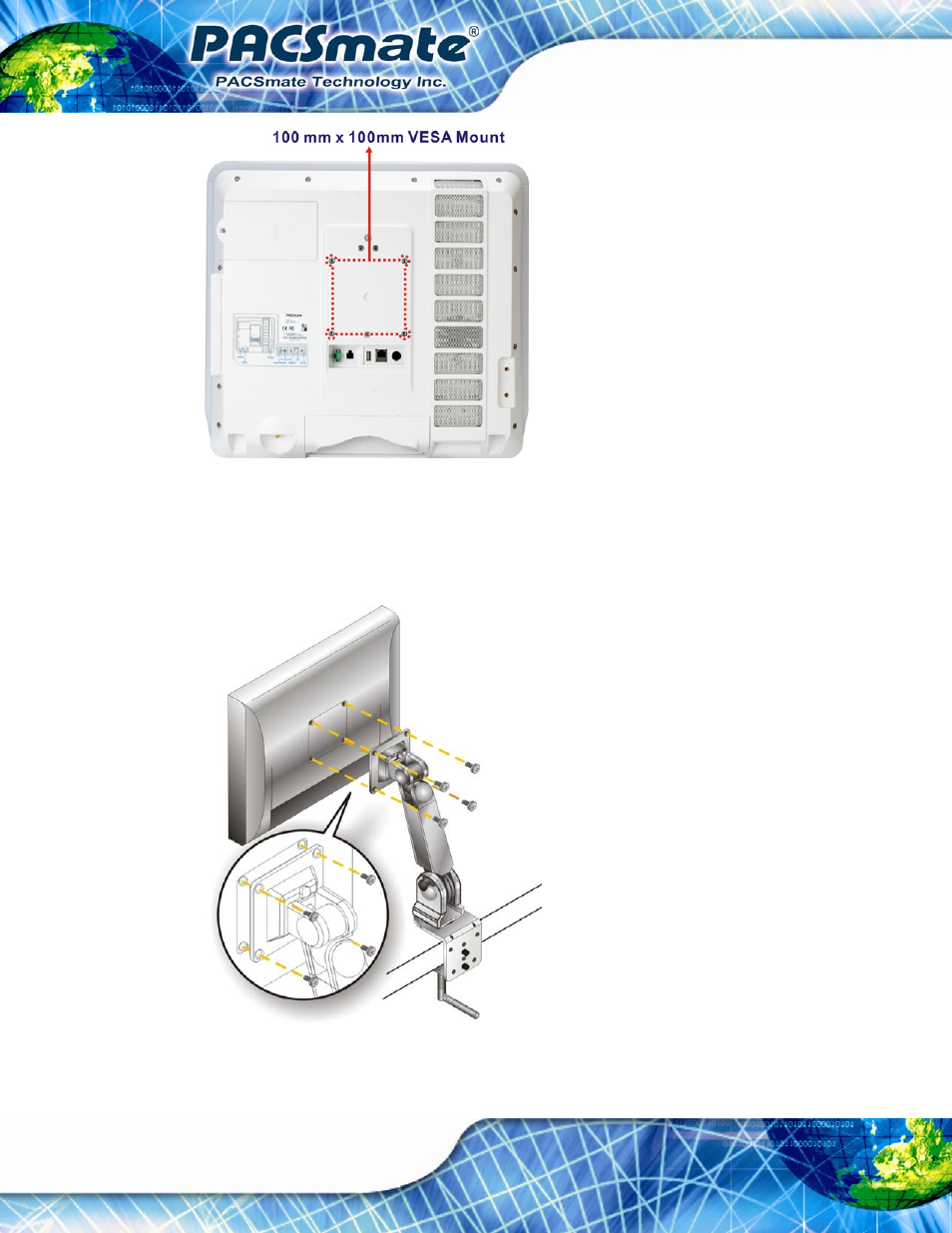

Figure 3-18: Arm Mount Retention Screw Holes

Step 4:

Secure the IBS-19A Series to the interface pad by inserting four retention

screws through the mounting arm interface pad and into the IBS-19A Series.

Figure 3-19: Arm Mounting
