IBS-19A Series Medical Panel PC

Page 36

Step 10:

To enhance the clarity and volume level of the microphone, click the small icon

below the Mic Volume control bar to bring up the Advanced setting window

(Figureٛ E-16). Check “Microphone Boost” and click OK.

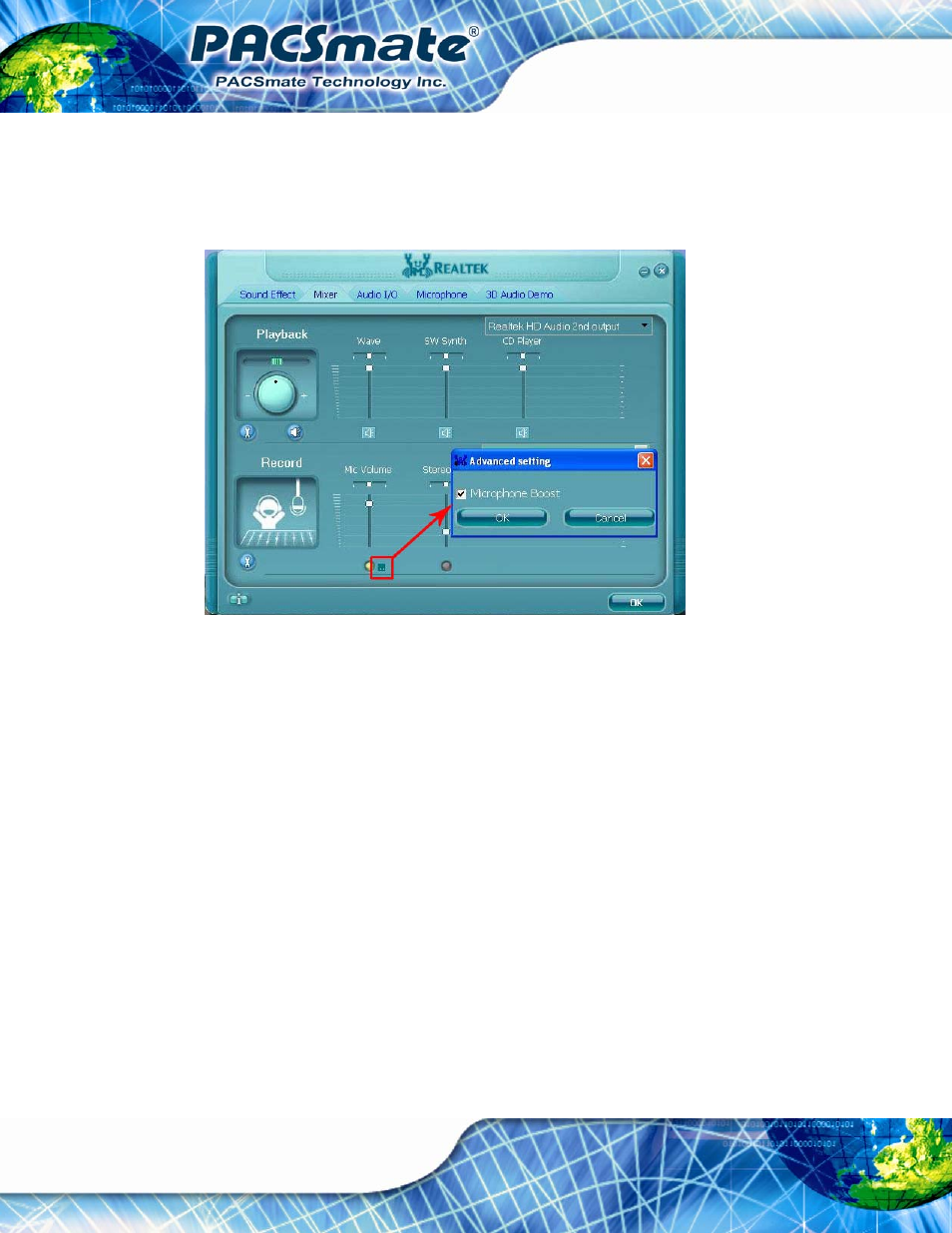

Figureٛ E-16: Microphone Boost

Step 11:

Select an input device from the dropdown menu in the Record section

(Figure E-17). The audio input device selected here will be set as the default

audio input device of the system.

Mic in at front panel (Pink)

: audio input through the front panel microphone.

Realtek HDA Primary input

: audio input through the handset.
