IBS-19A Series Medical Panel PC

Page 24

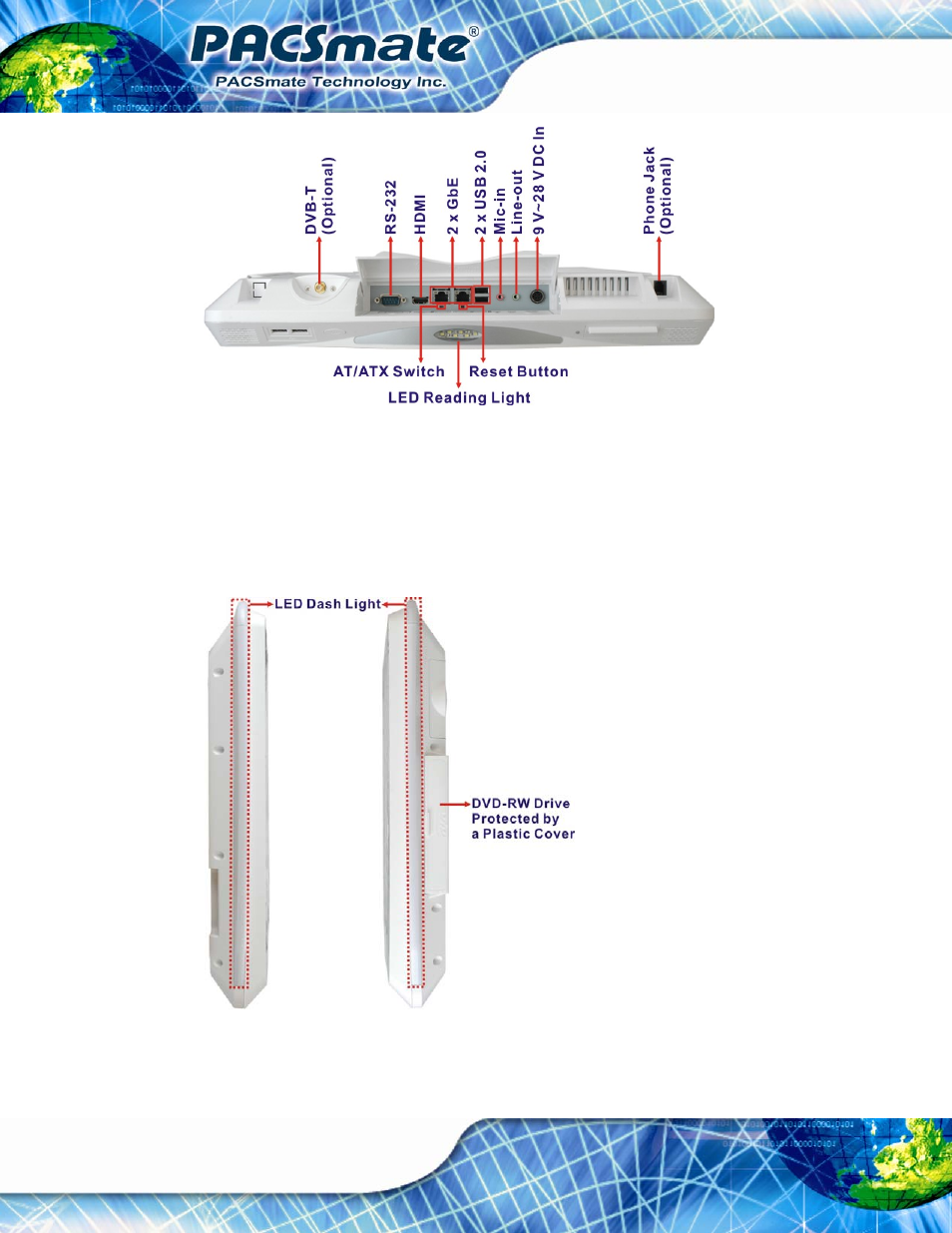

Figure 1-7: I/O Interface Connector Panel (Bottom)

1.4.5 Side Panels

The two side panels of the IBS-19A Series contain LED dash lights and a slim DVD-RW

drive protected by a plastic cover. See Figure 1-8.

Figure 1-8: Side View
