IBS-19A Series Medical Panel PC

Page 38

Pin Description Pin Description

11 GND

12 HDMI_CLK#

13 N/C

14 N/C

15 HDMI_SCL 16 HDMI_SDATA

17 GND

18 +5V

19 HDMI_HPD 20 HDMI_GND

21 HDMI_GND 22 HDMI_GND

23 HDMI_GND

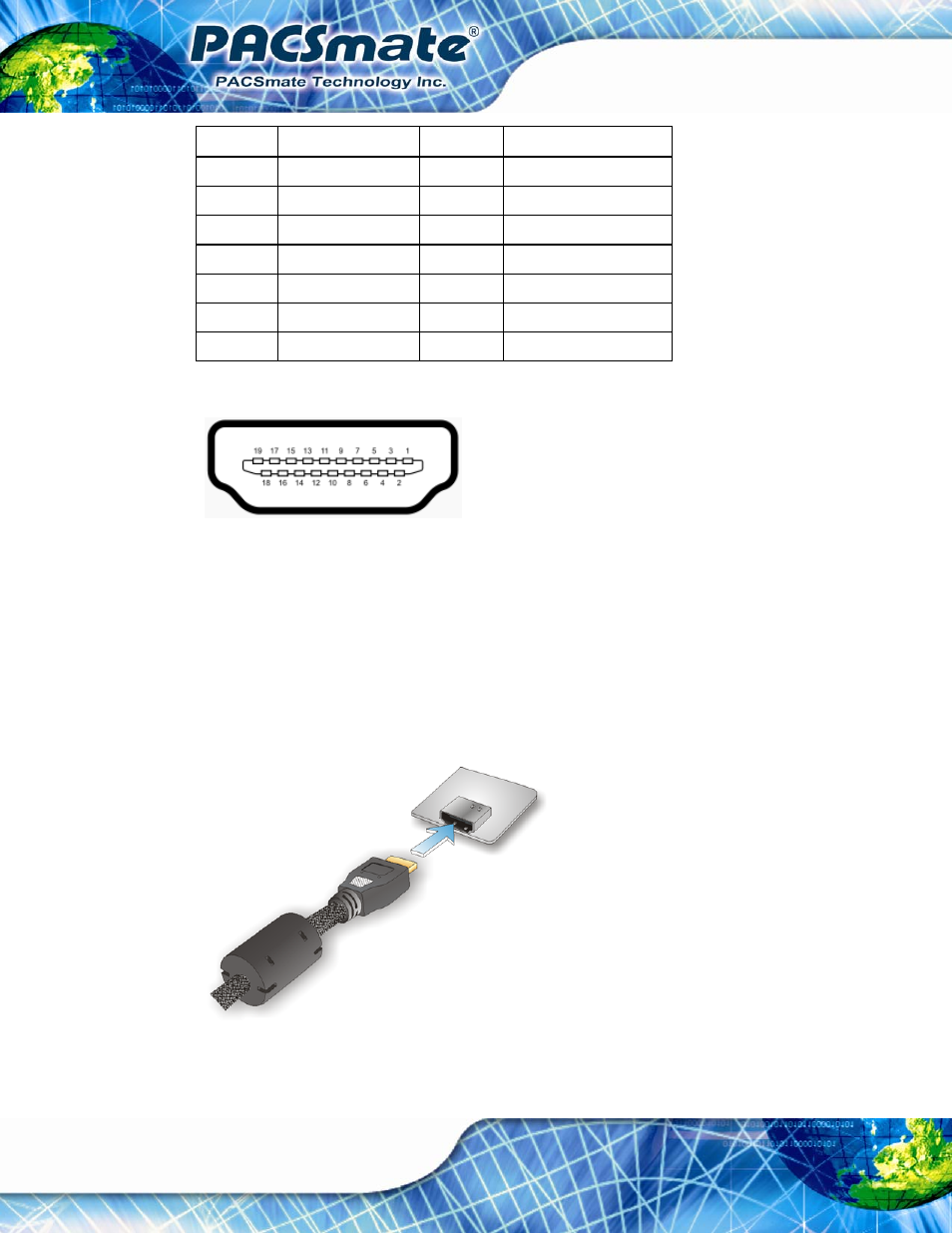

Table 3-1: HDMI Connector Pinouts

Figure 3-6: HDMI Connector

To connect the HDMI cable to the IBS-19A Series, follow the steps below.

Step 1:

Locate the HDMI connector. The location is shown in Section 1.4.4.

Step 2:

Align the connector.

Align the HDMI connector with the HDMI port. Make sure

the orientation of the connector is correct.

Figure 3-7: HDMI Connection
