IBS-19A Series Medical Panel PC
Page 19
ƒ Ambient Light Sensor
The ambient light sensor detects the brightness of ambient environment when
the auto-dimming function is turned on.
ƒ Remote Control Sensor
The remote control sensor receive infrared signal from the remote control.
ƒ Programmable Nursing Call Button
The nursing call button is surrounded by red LED light and is programmable.
ƒ LED Reading Light Button
The button cycles through low, medium, medium high and high intensity plus
on/off to control the LED reading light under the nursing call button.

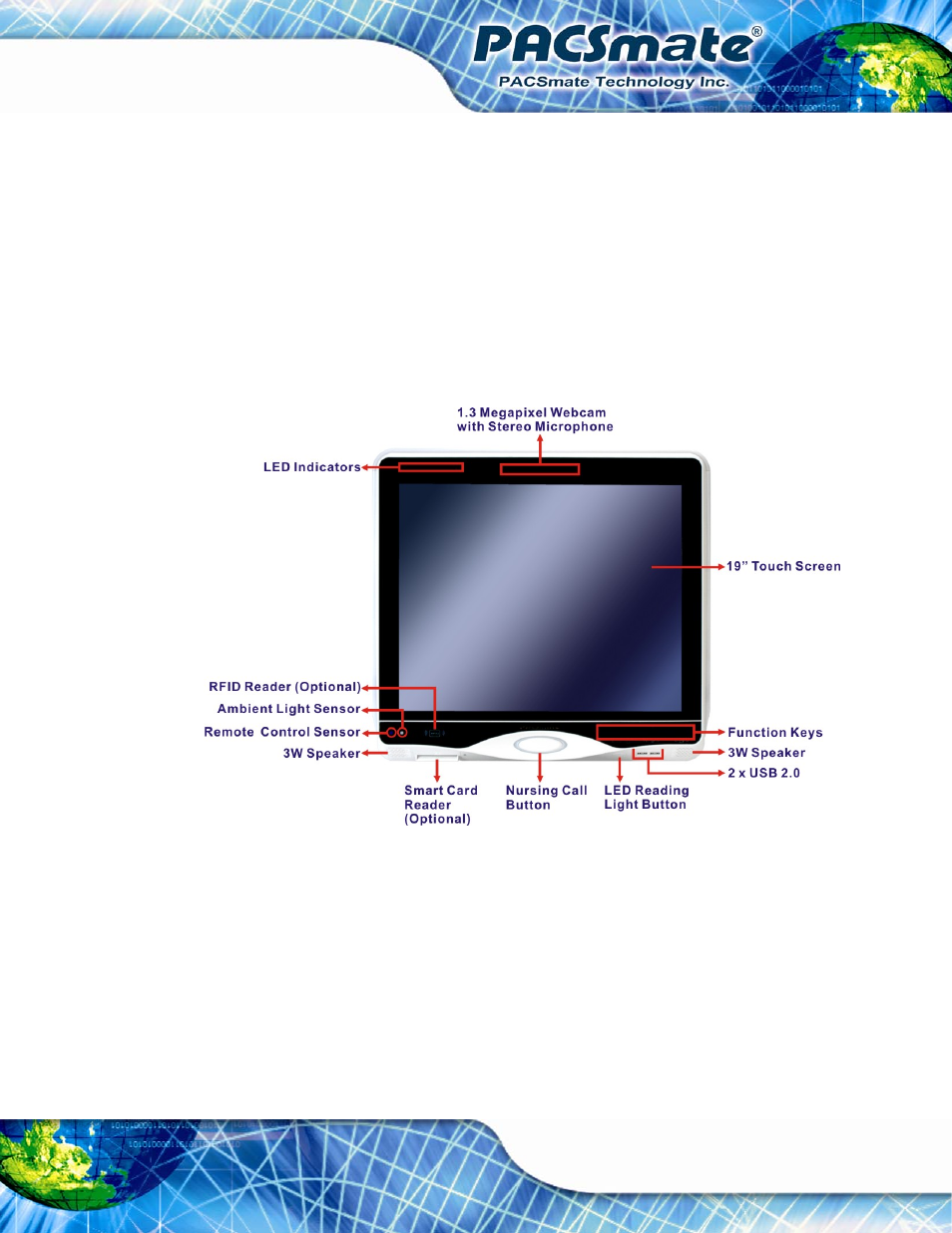

Figure 1-2: Front View
1.4.2.1 LED Indicators
The LED indicators on the front panel of the IBS-19A Series are shown below.
