3.5.5 Power Input Connector

The power connector connects to the 9 V ~ 28 V DC power adapter.

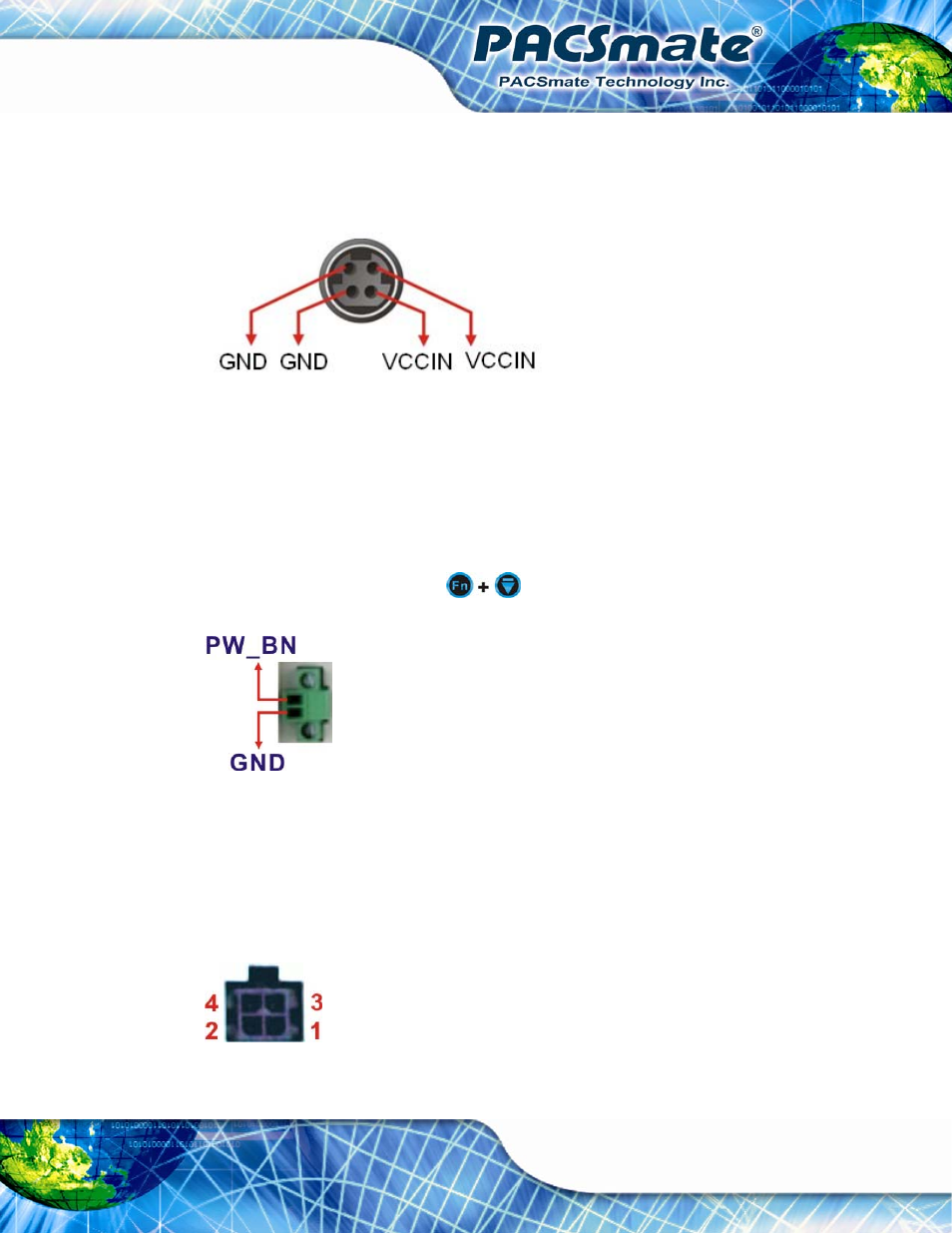

Figure 3-10: Power Connector Pinouts

3.5.6 Power Button Connector

The power button connector provides users an option to connect to an external power

button to control system power. However, the user can easily turn the system power on or

off by pressing the function buttons (

) on the front panel (see Section 1.4.2.2).

Figure 3-11: Power Button Connector Pinouts

3.5.7 RS-422/485 Serial Port

A RS-422/485 serial port device can be connected to the RS-422/485 serial port on the

rear panel. The pinouts of the RS-422/485 serial port is shown below.

Figure 3-12: RS-422/485 Serial Port
