IBS-19A Series Medical Panel PC
Page 39
Step 3: Insert the HDMI connector. Gently insert the HDMI connector. The connector
should engage with a gentle push. If the connector does not insert easily, check
again that the connector is aligned correctly, and that the connector is being
inserted with the right way up.
3.5.4 LAN Connectors
The LAN connector allows connection to an external network. The pinouts of the RJ-45
LAN connector are shown below.
Pin Description Pin Description
1 MDI0+ 10 MDI3-
2 MDI0- 11 +3.3Vsus
3 MDI1+ 12 ACT-1
4 MDI1- 13 Link 1000, +3.3Vsus
5 N/A 14 Link 100, +3.3Vsus
6 N/A 15 GND
7 MDI2+ 16 GND
8 MDI2- 17 N/A
9 MDI3+ 18 N/A
Table 3-2: LAN Pinouts

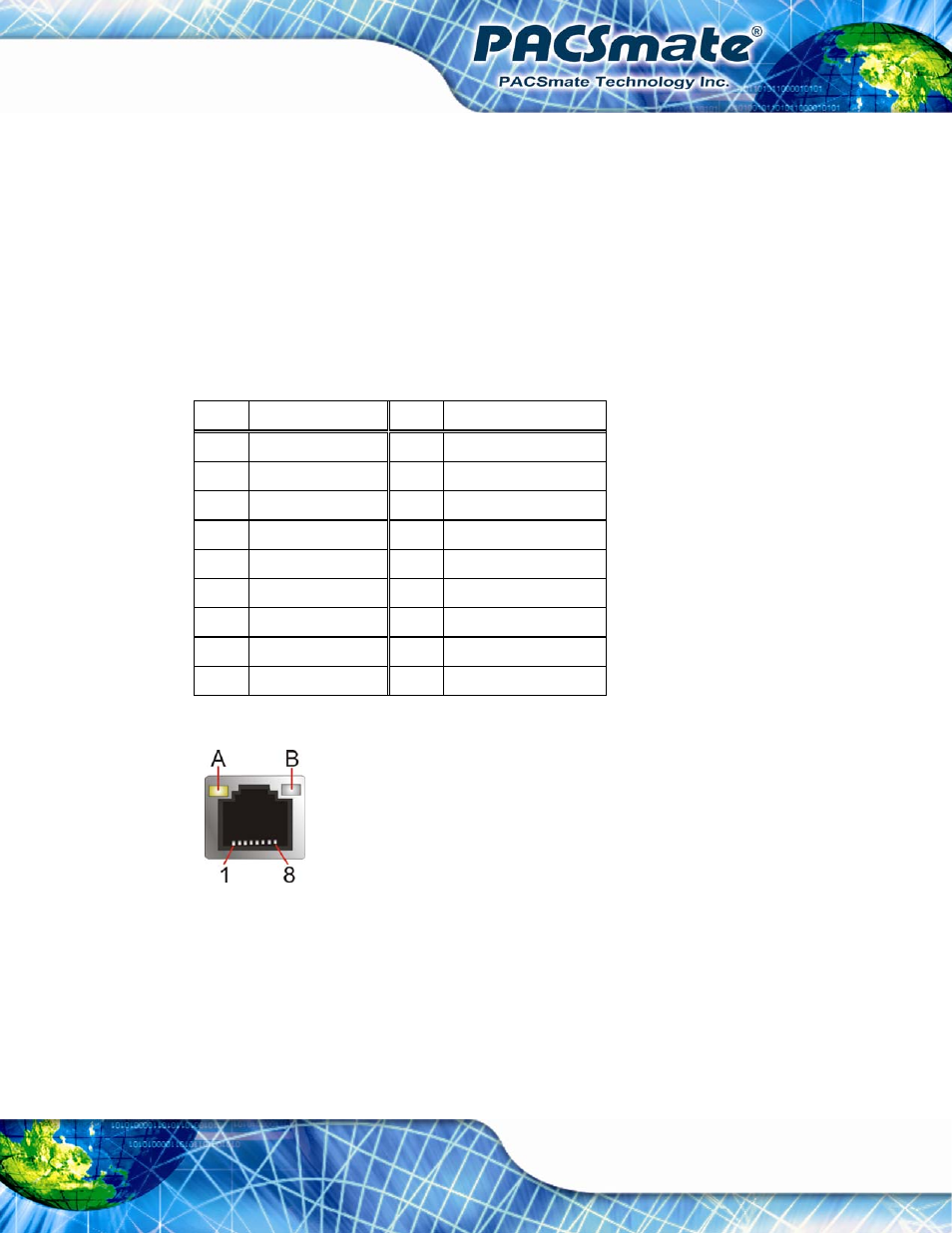

Figure 3-8: RJ-45 Ethernet Connector
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. See
Figure 3-8 .
