IBS-19A Series Medical Panel PC
Page 16
1.1 Overview

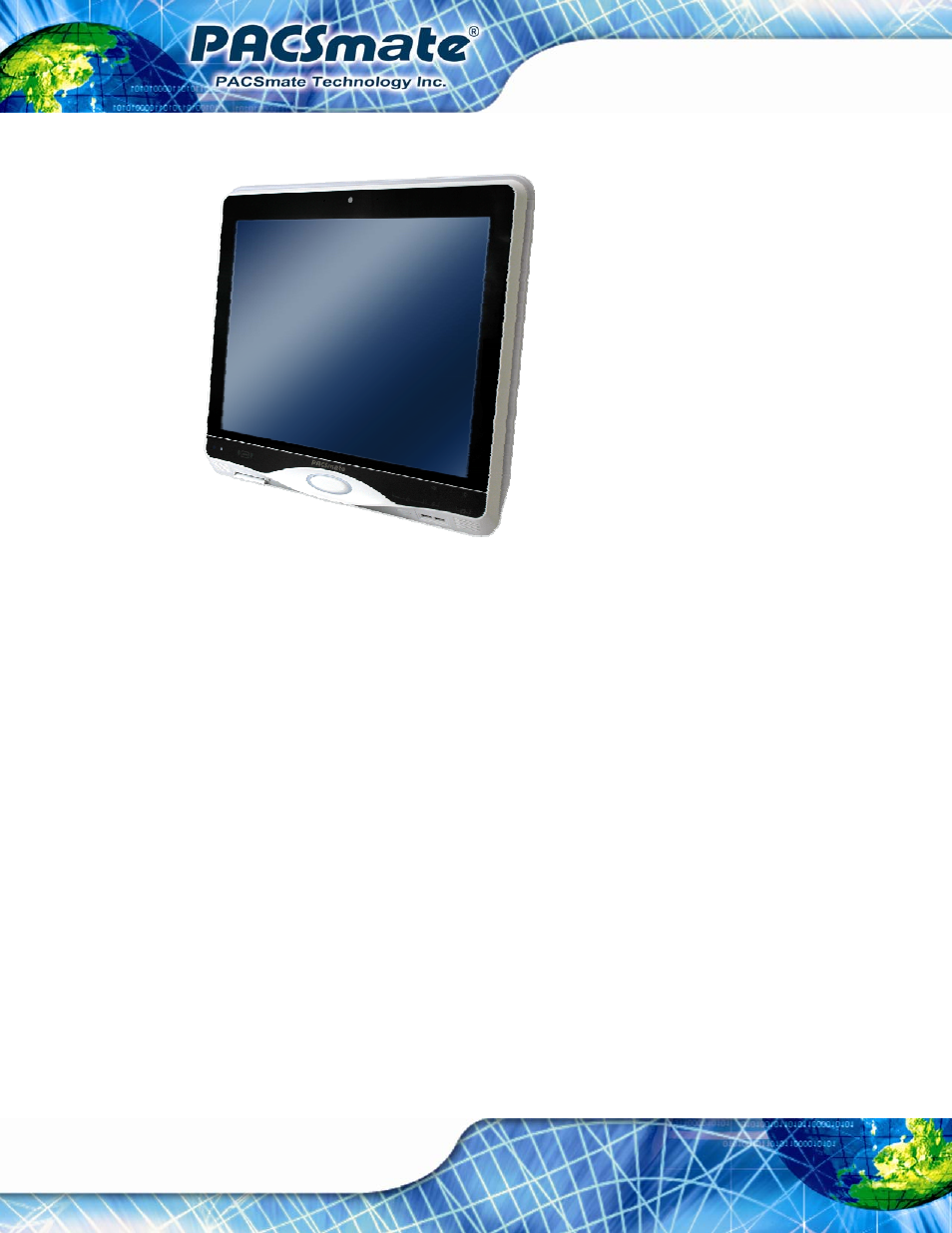

Figure 1-1: IBS-19A Series Medical Panel PC
The IBS-19A Series is an Intel® Core™ powered flat panel PC with a rich variety of
functions and peripherals. All IBS-19A Series models are designed for easy and simplified
integration into point-of-care (POC) applications.
An Intel® Core™ i5/i3 processor coupled with the Intel® H61 chipset delivers optimal
memory, graphics, and peripheral I/O support. The system comes with 2.0 GB of
preinstalled DDR3 dual-channel SO-DIMMs and supports a maximum of 8.0 GB ensuring
smooth data throughputs with reduced bottlenecks and fast system access. Dual display
support is provided via the HDMI port.
Two serial ports and five external USB 2.0 ports provide simplified connectivity to a variety
of external peripheral devices. Wi-Fi capabilities and three RJ-45 GbE connectors allow
for smooth connection of the system to an external LAN. The IBS-19A Series also
supports a 2.5” SATA HDD drive which can be accessed without removing the entire back
panel.
