IBS-19A Series Medical Panel PC

Page 42

Pin Description

Pin Description

1

RS-422 TX+

3

RS-422 RX+ (RS-485 D+)

2

RS-422 TX-

4

RS-422 RX- (RS-485 D-)

Table 3-4: RS-422/485 Serial Port Pinouts

To install the RS-422/485 devices, follow the steps below.

Step 1:

Locate the RS-422/RS485 connector. The location of the RS-422/RS-485

connector is shown in Section 1.4.4.

Step 2:

Connect the RS-422/485 connector to the RS-422/485 cable.

Step 3:

Insert the serial connector

. Insert the DB-9 connector of a serial device into

the DB-9 connector on the RS-422/485 cable.

Step 4:

Secure the connector

. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

Step 5:

The DB-9 connector pinouts are listed below.

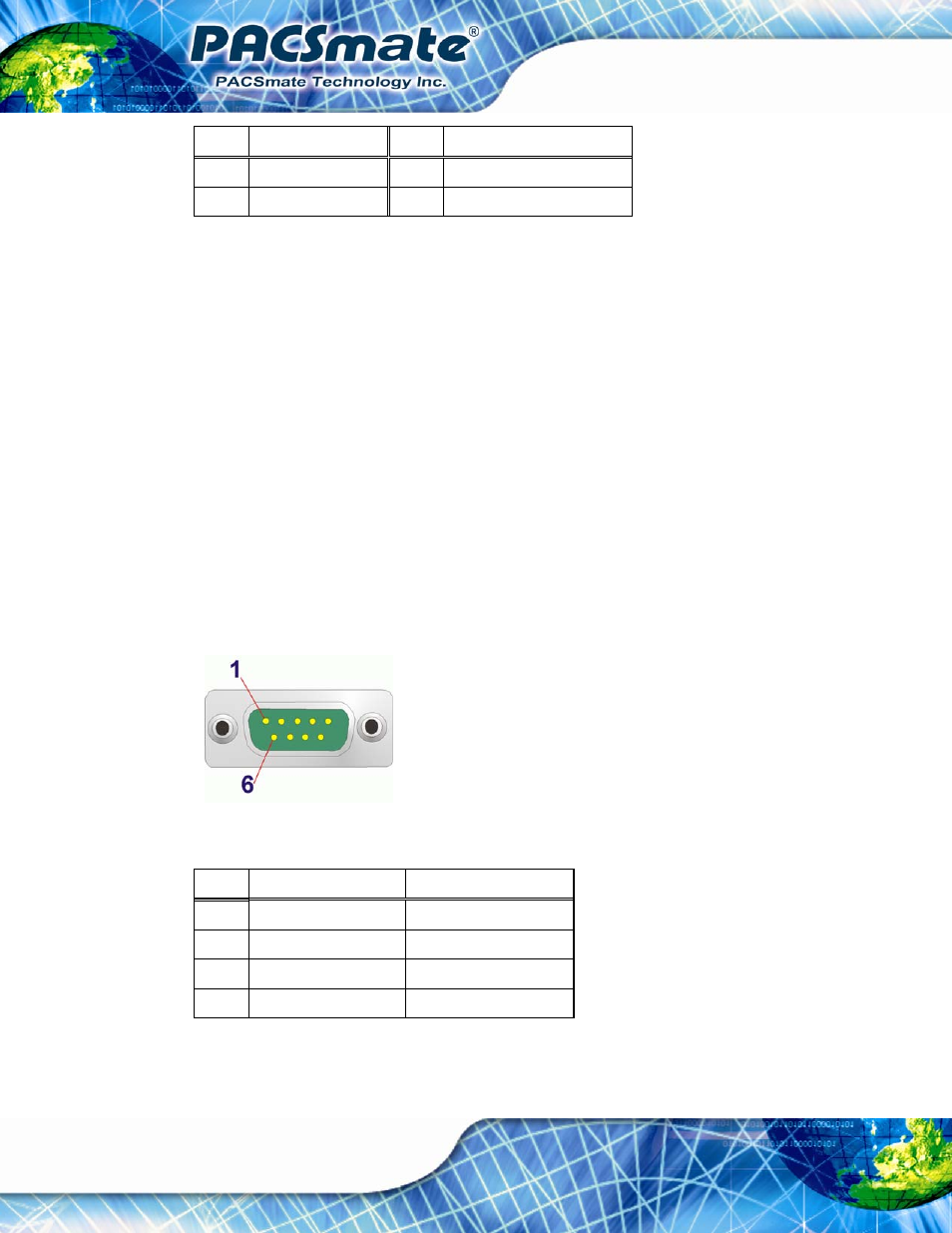

Figure 3-13: RS-422/485 Serial Port (DB-9)

Pin

RS-422

RS-485

1 TX+

--

2 TX-

--

3 RX+

DATA+

4 RX-

DATA-
