93
Hood Cleaning
3. Remove and clean grease filters, filler panel and grease tray.

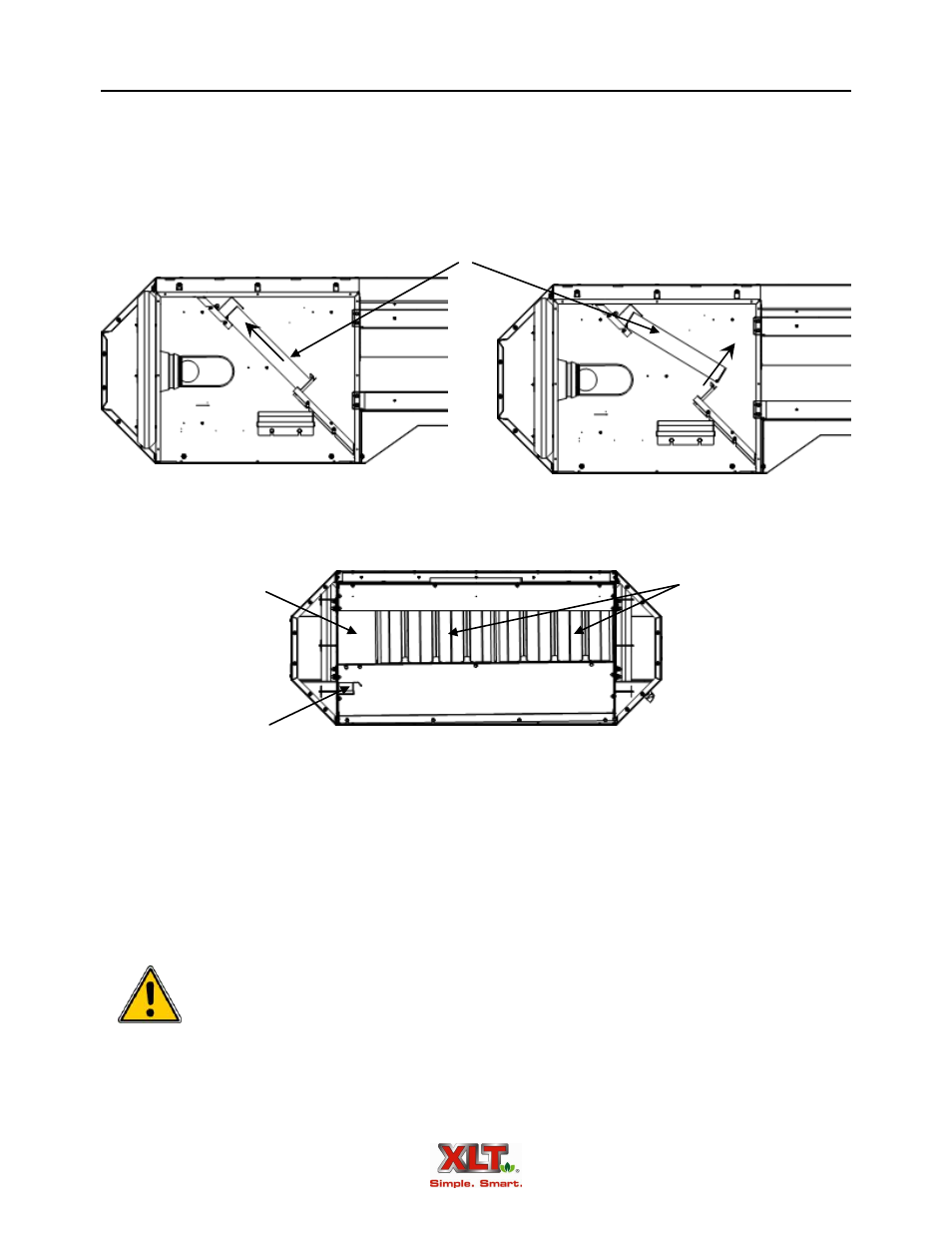

To remove grease filters and filler panels.
a. Slide the filter or filler panel up.
b. Tilt bottom into duct area until filter clears lower filter mount as shown and remove.
As viewed from end. Some parts removed for clarity.
Filler Panel to be
over Grease Tray
Grease Filters
Grease Tray
Front of Hood
As viewed from front. Some parts removed for clarity.
Left end shown, repeat for right end of hood.
4. Wipe clean all interior and exterior surfaces.
CAUTION
DO NOT spray liquid cleaning agents in the slots and holes of the following locations:

VFD Box

Back of control box

Underneath control box
Grease Filters &
Filler Panels
