48

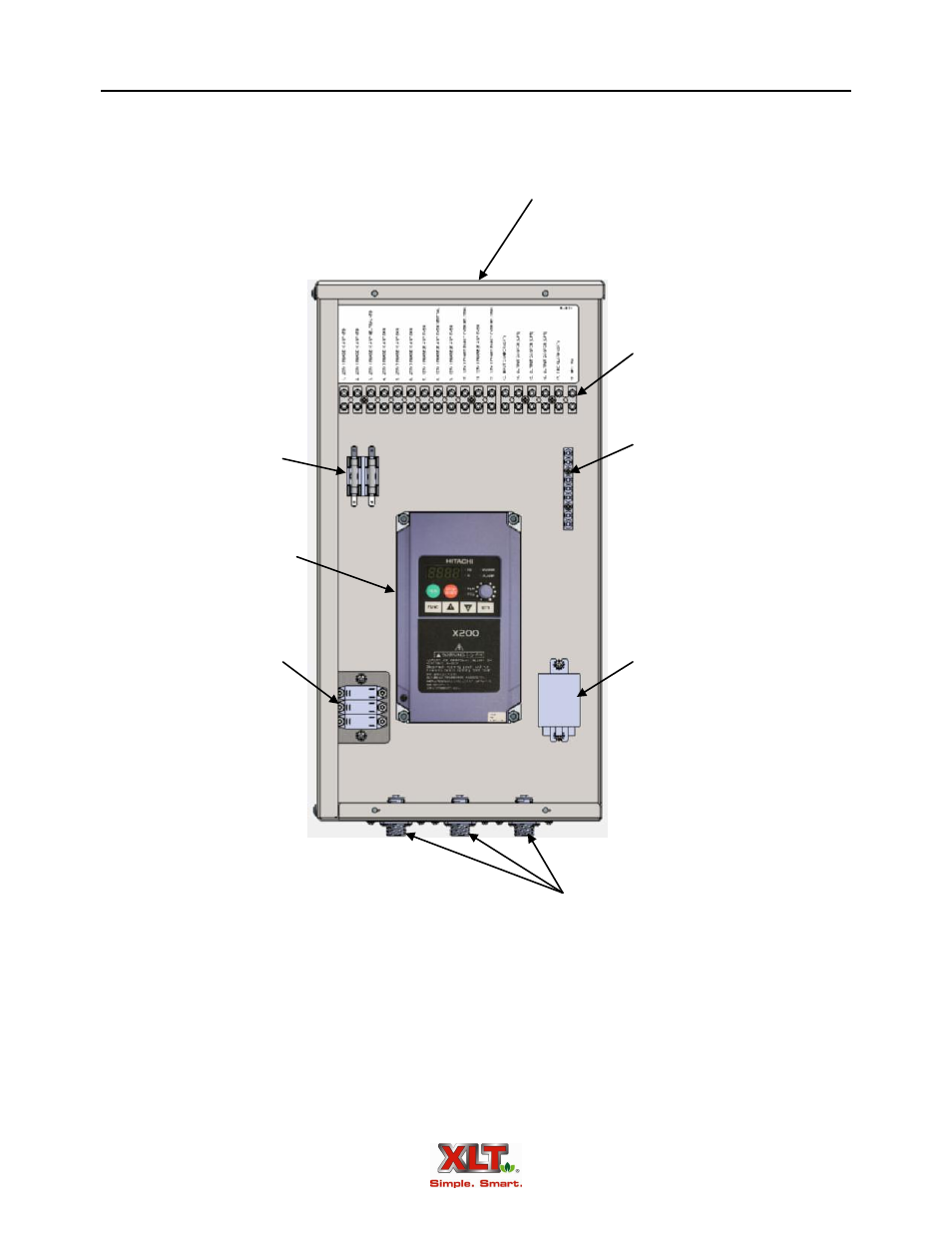

VFD Control Box - Standard
Fuses
Fire Suppression
Relay (optional)
MUA Damper
Relays (optional)
Grounding Block
Terminal Block (TB)
VFD Controller
Oven/hood interface and power cords
connect to bottom of VFD control box
Electrical supply, MUA and fire
suppression controls are wired
through top of VFD control box
Wiring removed for clarity. See schematic for wiring details.
Hood Electrical Requirements
