Hood Installation

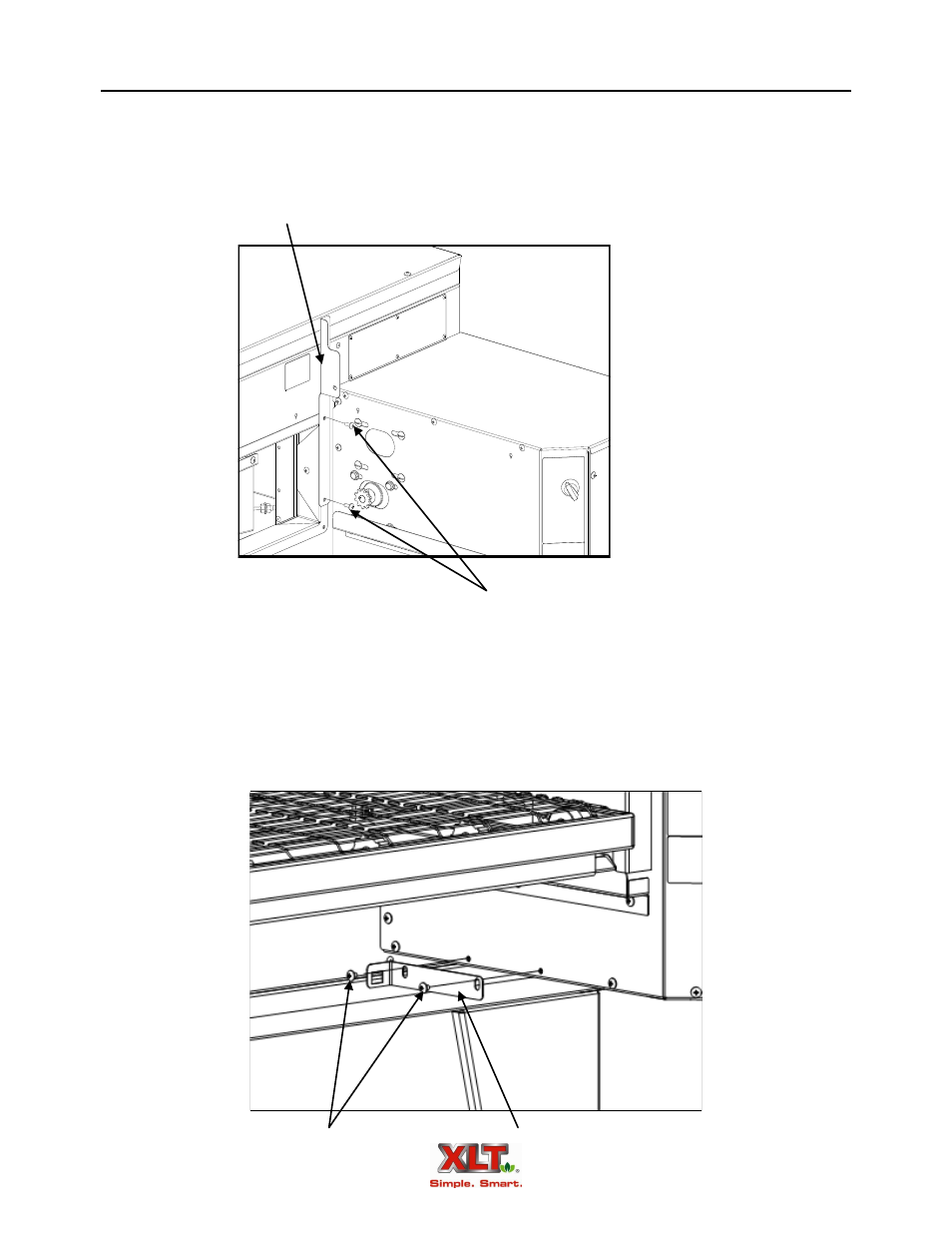

Prepare Ovens - Right Hand Control Box Closeout Bracket

Control Box Closeout Bracket

Conveyor Opening Screws

Conveyor and chain guard removed for clarity

Install one (1) control box closeout bracket on top oven using the two (2) screws already installed
in conveyor opening bezel. Orientate bracket with flange toward center of conveyor.

Prepare Ovens - Right Side Bottom Rail Bracket

Install one (1) bottom rail bracket on bottom oven using two (2) center screws already installed in
control box. Orientate bracket with square hole down and flange toward oven.

Bottom Rail Bracket

Control Box Screws
