Hood Installation

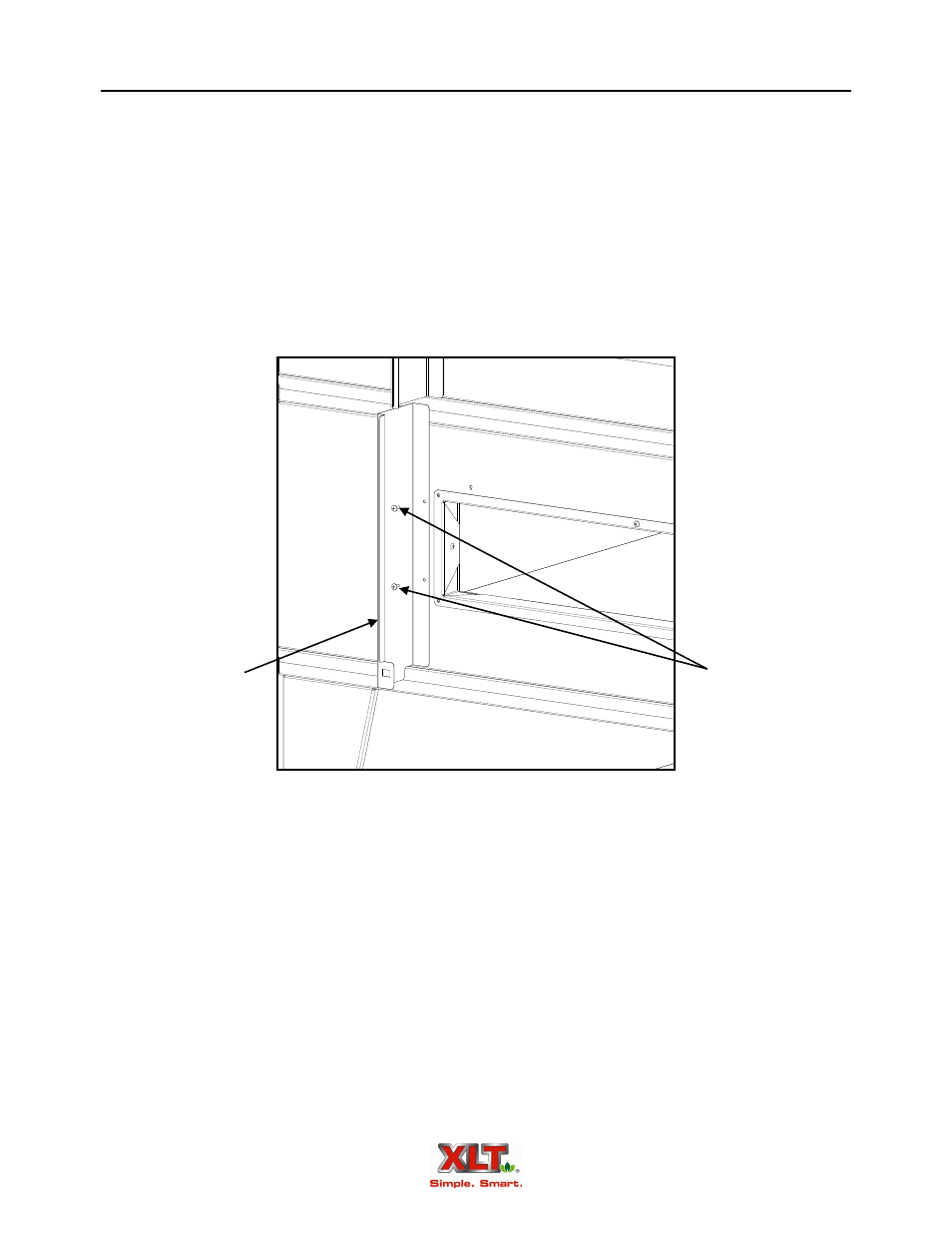

Prepare Ovens - Left Side Back Shroud Brackets
For Models 1832, 2440, 3240, 3255 & 3855
Conveyor Opening
Screws
Left
Back
Shroud Bracket
Install one (1) Left Back Shroud Bracket for each oven. The bottom oven will receive the bracket
with a square hole, orientate this bracket with the square hole toward the floor. The other ovens
will receive one(1) bracket each without the square hole.
Conveyor removed for clarity.
