Hood Installation
Connect Oven Power and Controls to Hood
After appropriate connections have been made, the oven power and control cords must be
connected to the VFD box located on the right
back
corner of the AVI Hood. All VFD boxes are
outfitted with three (3) power outlets and three (3) control cord outlets, regardless of how many
XLT Ovens are installed. For a single oven use “Top” location. For a double stack use “Top” lo-
cation for upper oven and “Bottom” location for lower oven, leaving “Middle” location open
.
1. Insert and twist each oven power cord into the designated location on the bottom of the VFD
box.
2. Insert and lock each oven control cord into the designated location on the bottom of the VFD
box.

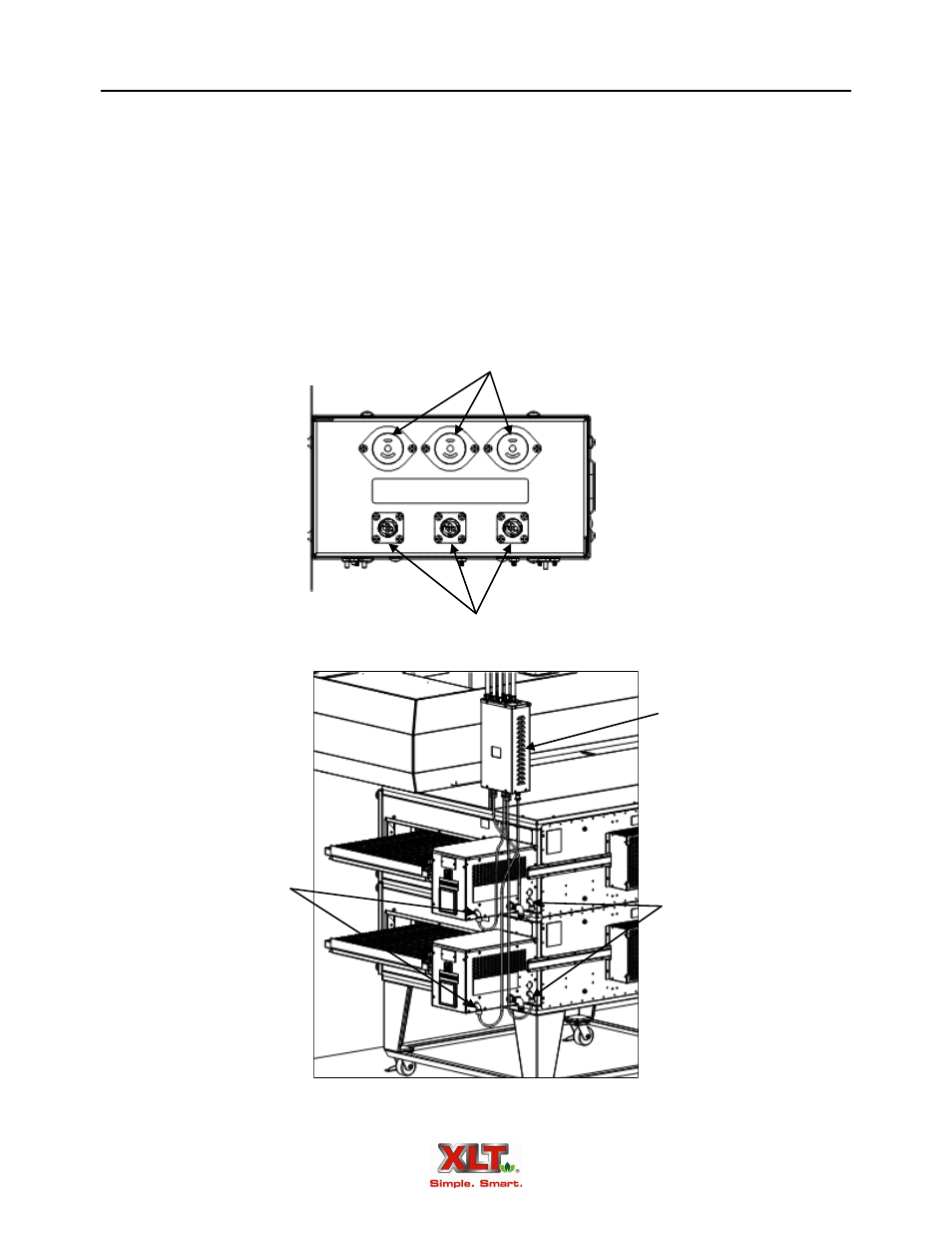

TOP
OVEN
MIDDLE
OVEN
BOTTOM
OVEN
Twist-Lock Power Outlets
Control Cord Outlets
Bottom of VFD Box
Double stack shown, setup for single and triple stacks is similar.
VFD Box
Control Cords
Power Cords
Back of Oven & Hood unit
