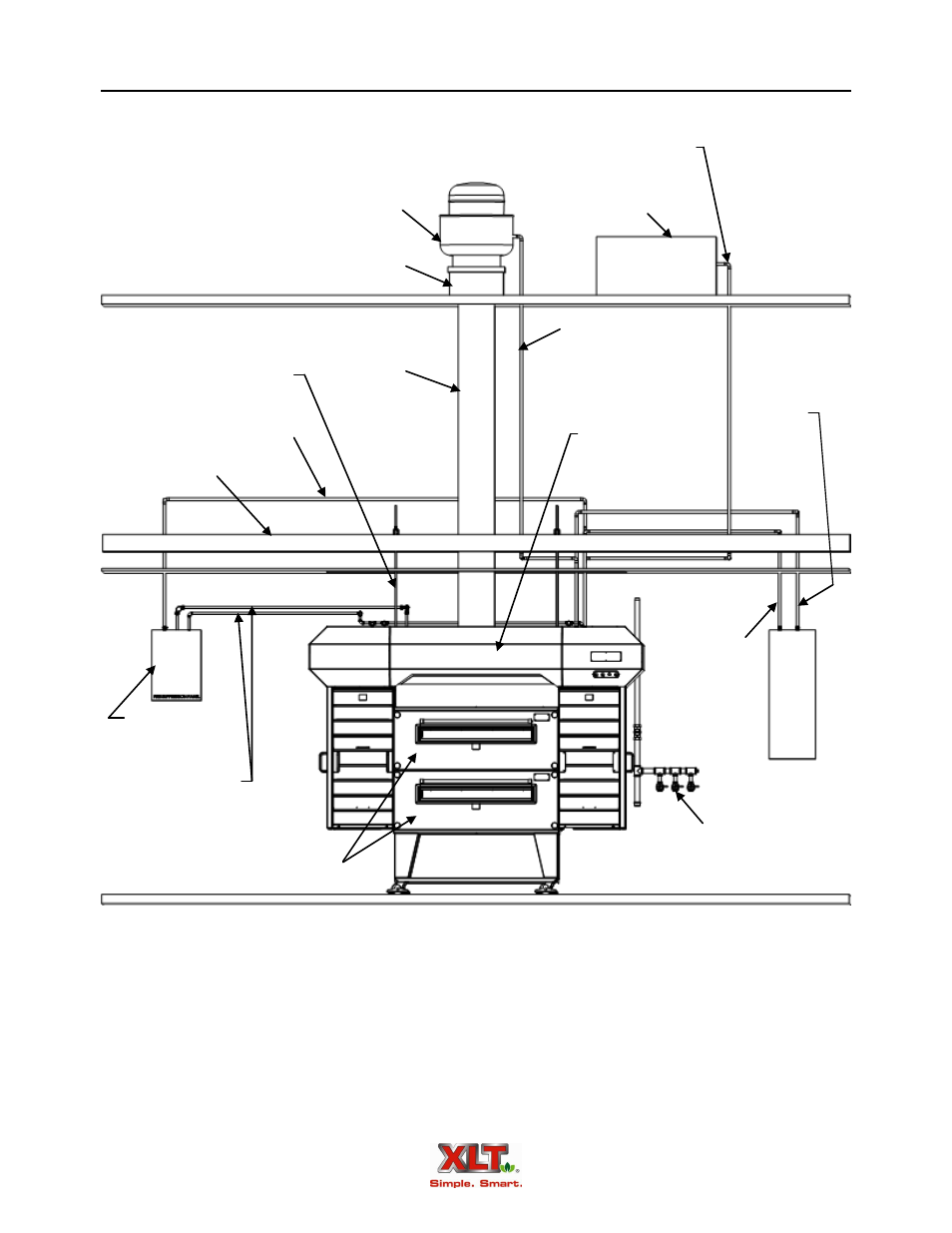

Hood Rough-In Specifications
Exhaust Fan
Roof
Ceiling Joist
Drop Ceiling
Fire Suppression
Regulator Panel
Finished Floor
Electrical
Panel
Welded Duct
AVI Hood
XLT Ovens
Gas Manifold
HVAC Unit
Fan Curb
1/2” All-thread Supported
by Unistrut (4 Locations)
All structural members, electrical, gas & fire suppression equipment shown for reference only.
3 Phase Power
from VFD Box
Signal Wires for
HVAC Dampers
Signal Wire for Fire Alarm
(3) 120V
Power to
VFD Box
for Ovens
Fire Suppression
Supply Lines
Single Phase
Power to
VFD Box
