Oven Initial Start-Up
Contact XLT Ovens or your designated representative to make all gas pressure adjustments.

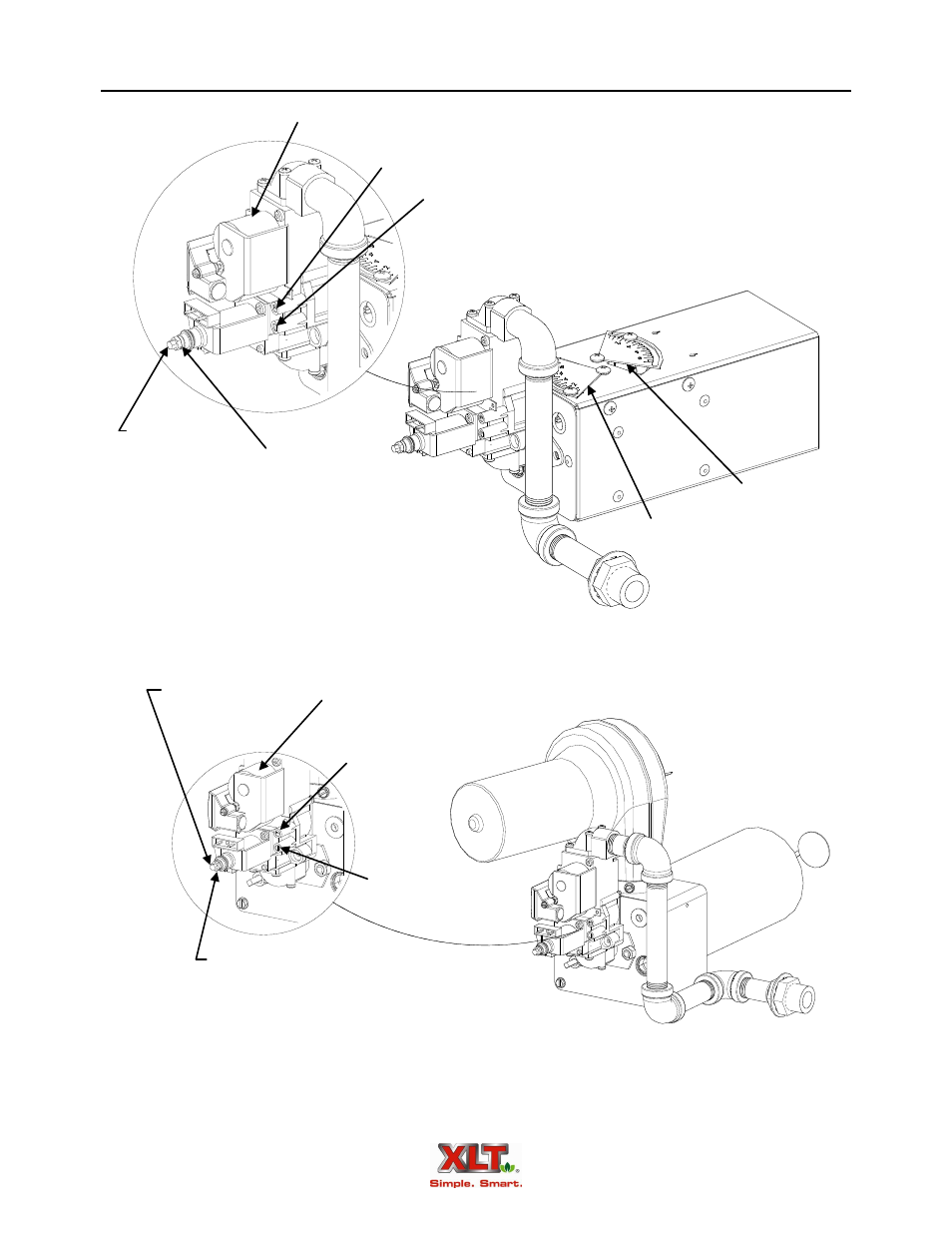

Direct Ignition Burner
Combination
Gas Valve
Low Flame Bias
Adjustment (5mm)
Inlet Pressure Tap
Manifold
Pressure Tap
Manifold Pressure Adjustment High
Flame Bias Screw (Brass Nut 8mm)
Quiet Fire
Direct Ignition Burner
Combination Gas Valve
Inlet Pressure Tap
Low Flame Bias
Adjustment (5mm)
Manifold
Pressure Tap
Manifold Pressure
Adjustment (High
Flame Bias Screw
(Brass Nut– 8mm)
Main Shutter
Secondary
Shutter
