Install Grease Trays, Light Bulbs & Light Bulb Covers
Hood Installation
Grease Tray
Light Bulb
Clear Light Bulb Cover
Light Fixture
Grease Tray
Handle
Left end shown - Repeat for right end

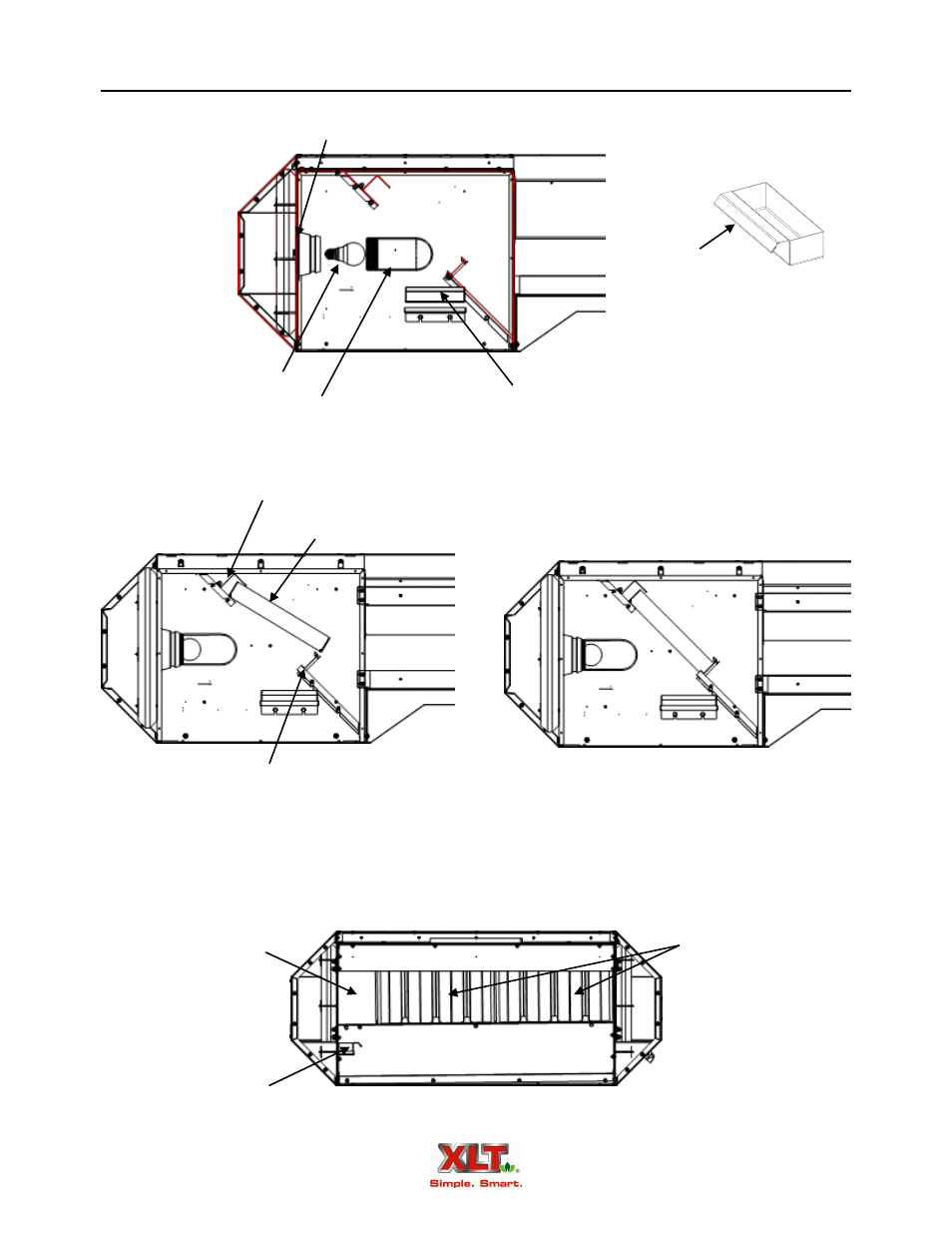

Install Grease Filters & Filler Panels
1. Insert bottom of grease filter filler panel behind lower filter bracket.
2. Slide top of grease filter/filler panel into upper filter bracket.
3. Raise grease filter/filler panel up until bottom clears back of lower filter bracket.
4. Rest bottom of grease filter/filler panel into lower filter bracket.
Upper Filter Bracket
Lower Filter Bracket
Grease Filter
Installed Grease Filters and Filler Panel
Left End Shown - Repeat for Right End
As viewed from end. Some parts removed for clarity.
Filler Panel to be
over Grease Tray
Grease Filters
Grease Tray
Front of Hood
