Oven Cleaning

3. To remove and clean the lower finger outer panels and lower finger body assemblies, raise the

front of the conveyor and insert two (2) front panel knobs, one (1) each side, as shown.

NOTE

Prior to the removal of the finger covers, note the location and configuration to ensure
proper reassembly. Typically, upper finger bodies are approximately 2” [50 mm] thin-
ner than lower finger bodies. The finger outer panels are the same dimensions.

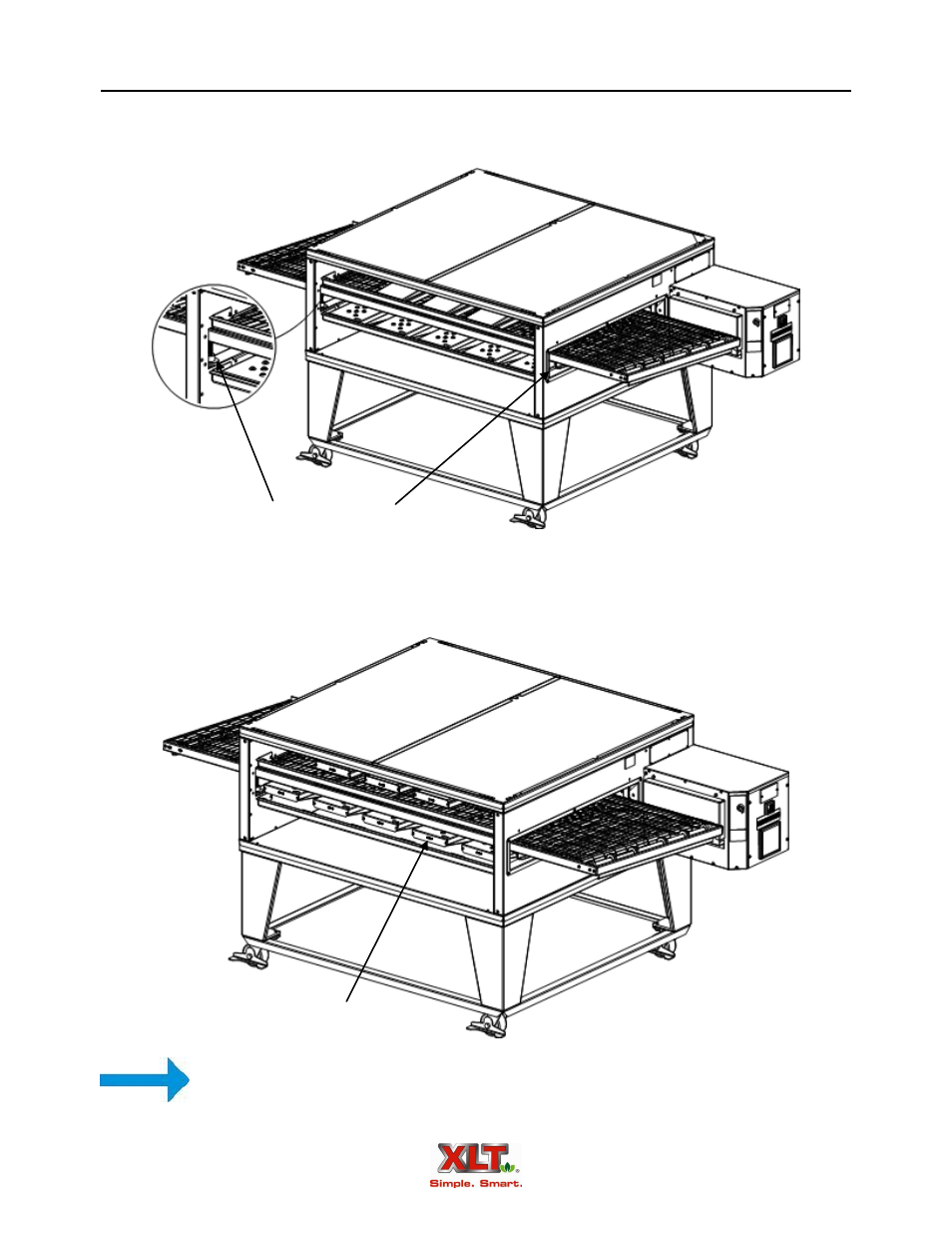

Front Panel Knobs

4. Raise the front of the lower finger bodies, one at a time, approximately one inch, [25 cm], and

slide the finger outer panels out towards the front.

Finger Bodies
