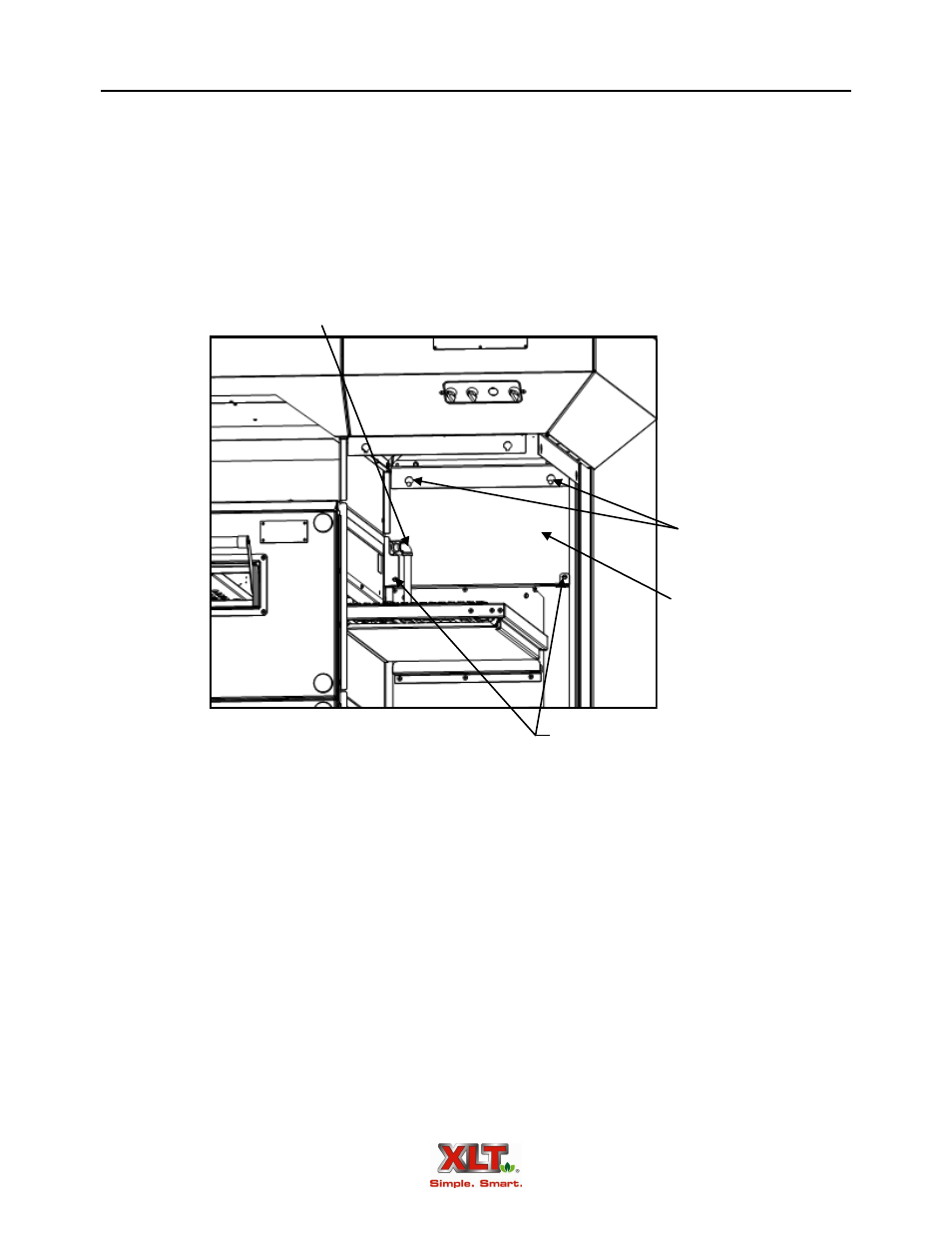

Install Control Box Upper Closeout
Hood Installation
Thumb screws
Keyholes
Some components removed for clarity. Right side shown, left side similar if applicable.
Fire Suppression Piping (optional)
1. Install one (1) Control Box Upper Closeout Panel above upper Control Box.
2. Line up shoulder bolts located near top of panel with keyholes in bracket, allow panel to drop into place.
3. Install thumb screws from conveyor side through previously installed bracket, thread into Control Box Upper
Closeout Panel.
4. Repeat for left side if ovens have left hand control boxes.
Control Box Upper
Closeout Panel
