Hood Electrical Requirements

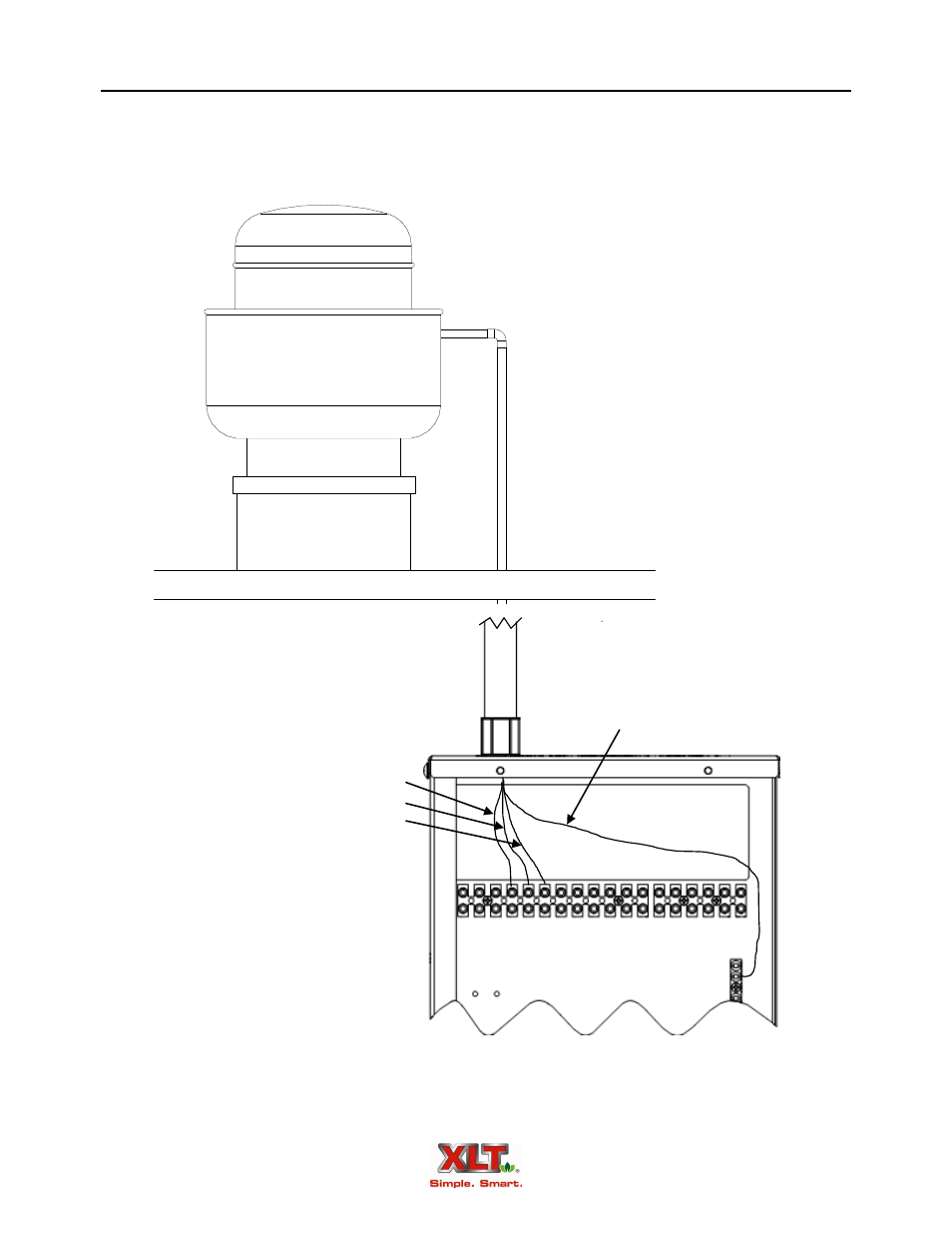

Exhaust Fan (not to scale)
Power from VFD to Exhaust Fan - Standard
Red TB Position 4
Blue TB Position 5
Black TB Position 6
Ground (green)
Conduit shown for reference only
All wiring below the terminal
block to be done by XLT Ovens
and is removed for clarity. See
schematic for wiring details.
