76
Hood Installation
Hang Hood From Ceiling Joists
After the AVI Hood has been installed on top of the ovens and moved into position, it must
be hung from the building structure to relieve the weight from the ovens and to allow the ovens to
be moved for maintenance and cleaning. XLT Ovens supplies two (2), 24” [610mm] long pieces

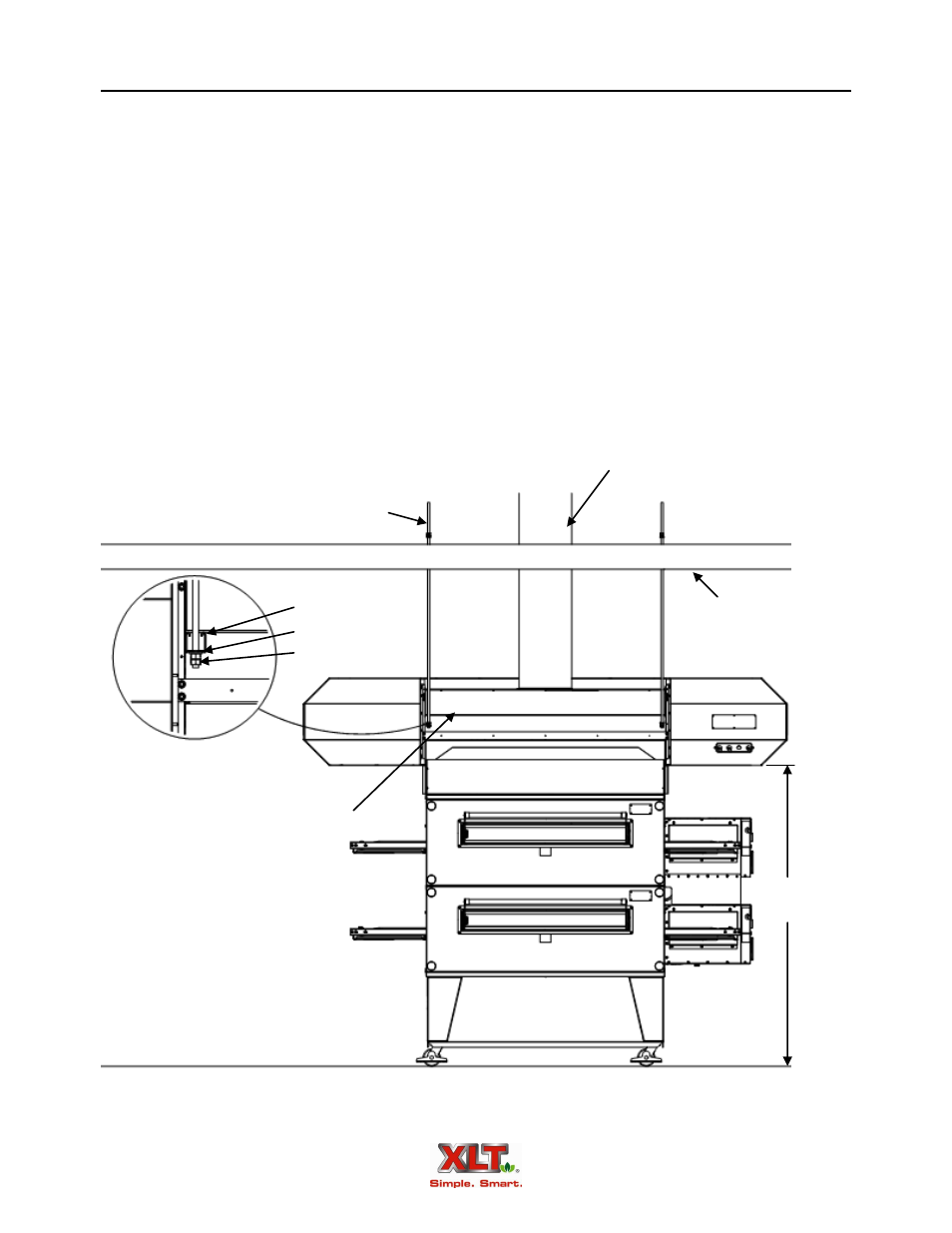

of Unistrut for installation under the horizontal air duct located in the center of the hood. Shown
below is a typical installation using four (4) pieces of Unistrut and four (4) lengths of 1/2”-13 all-
thread. It is recommended that a flat washer and two (2) nuts be placed under the bottom piece of
Unistrut and over the top piece to prevent the hood from moving after installation is complete.
Please note the final distance from the finished floor to the bottom of the hood must be 69 1/2” +/-
1/8” [1765mm +/-3.2], measured at all four (4) corners.
Unistrut
Flat Washer
1/2-13 Nuts (2)
1/2-13 All-thread (4 places)
Welded Duct
Ceiling Joist (shown
for reference only)
Finished Floor
69 1/2
±1/8
[1765
±3.2
]
Front fascia panel removed for clarity
Horizontal Duct
