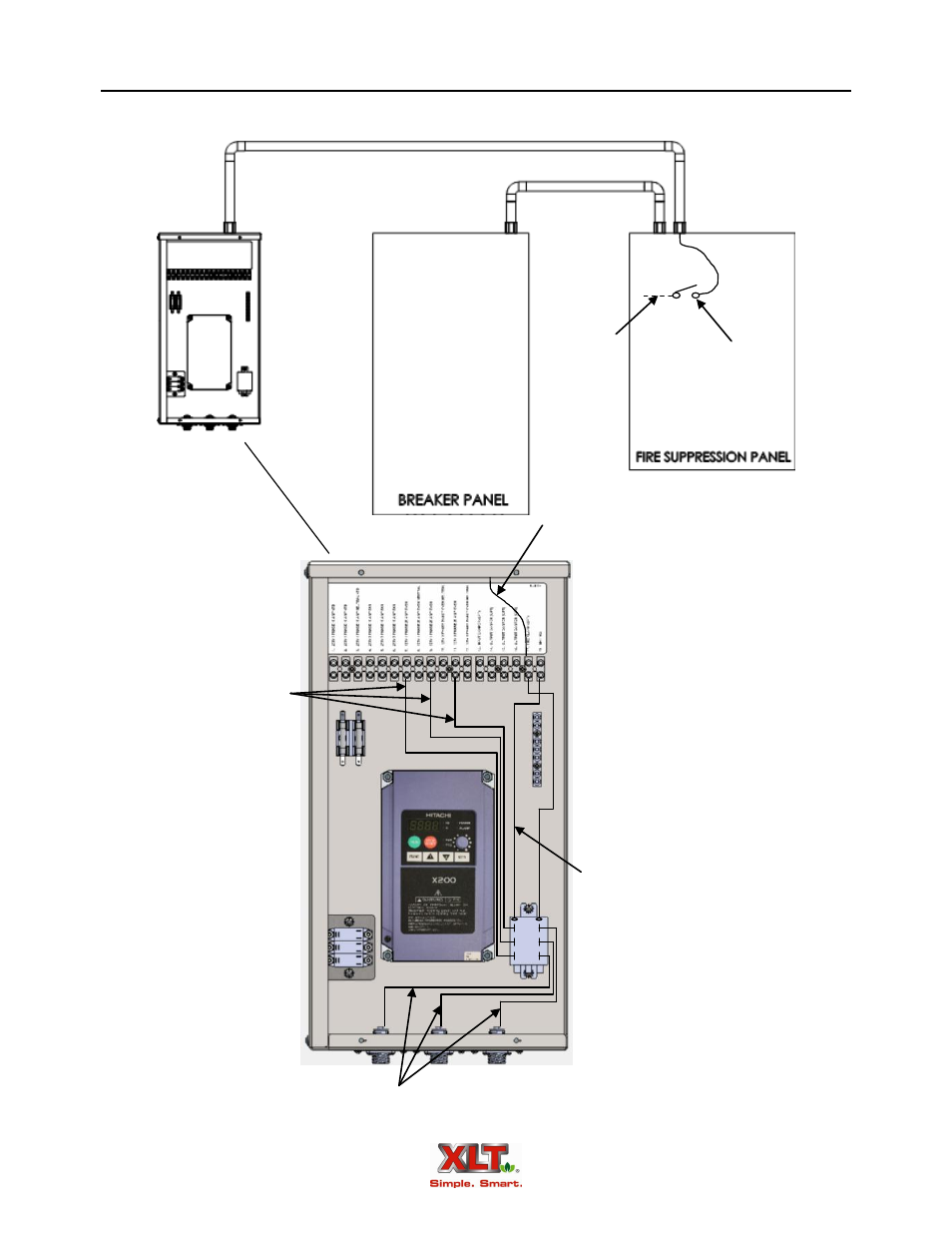

Hood Electrical Requirements
Fire Alarm Relay - Standard (optional)
T3
T2
T1
L3
L2
L1
Oven power out
Oven power in
A1
A2
Neutral
Signal in from fire suppression panel
TB Position 17
All wiring below the terminal
block to be done by XLT Ovens
and is shown for reference only.
See schematic for wiring details.
Fire
Alarm
Switch
120VAC
Supply
Conduit, breaker panel and fire suppression panel shown for reference only.
