Hood Installation

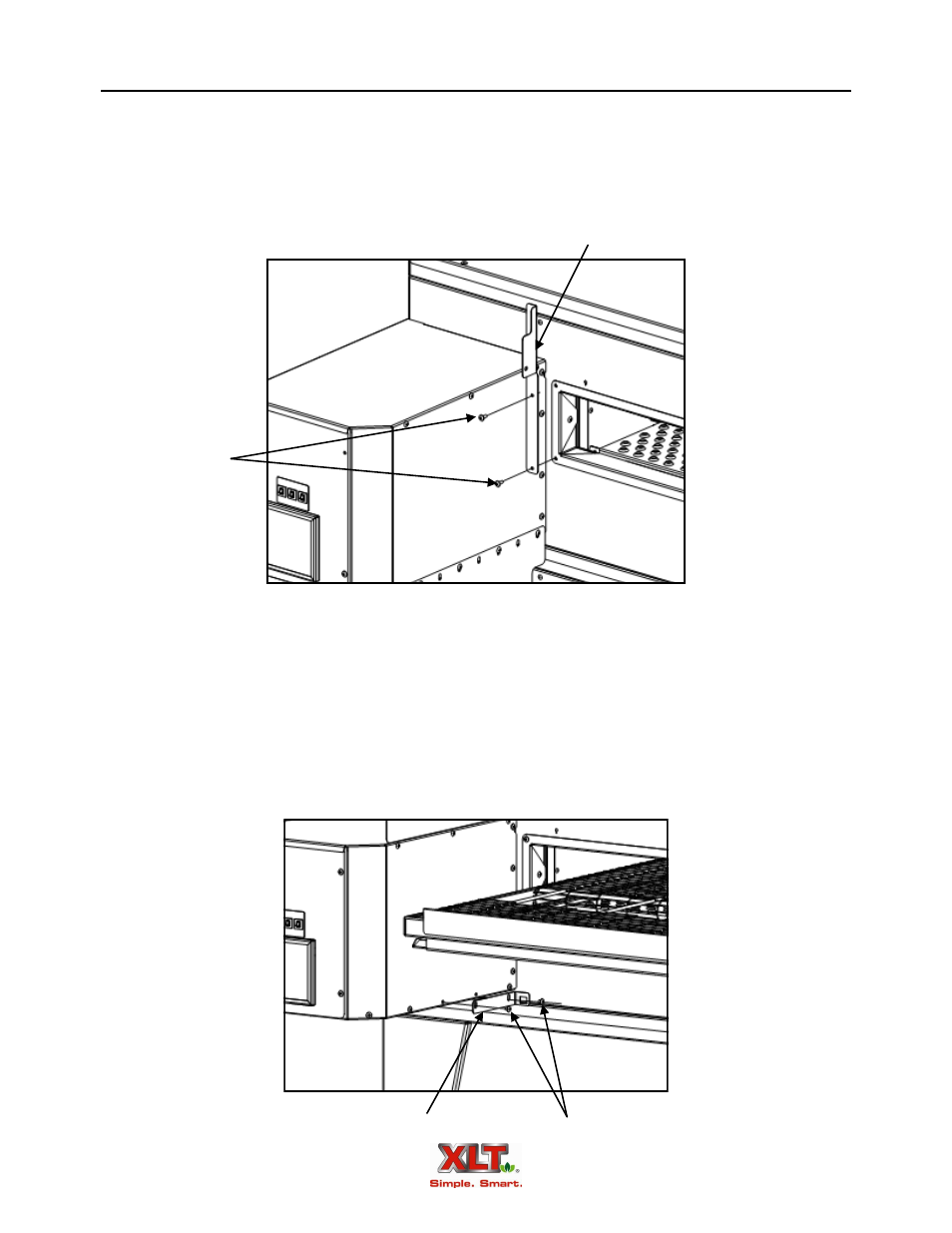

Prepare Ovens - Left Hand Control Box Closeout Bracket
Control Box Closeout Bracket
Conveyor Opening
Screws
Conveyor removed for clarity
Install one (1) control box closeout bracket on top oven using the two (2) screws already installed
in conveyor opening bezel. Orientate bracket with flange toward center of conveyor.
For Models 3270 & 3870
Prepare Ovens - Left Side Bottom Rail Bracket
Install one (1) bottom rail bracket on bottom oven using two (2) center screws already installed in
control box. Orientate bracket with square hole down and flange toward oven.
Bottom Rail Bracket Control Box Screws
For Models 3270 & 3870
