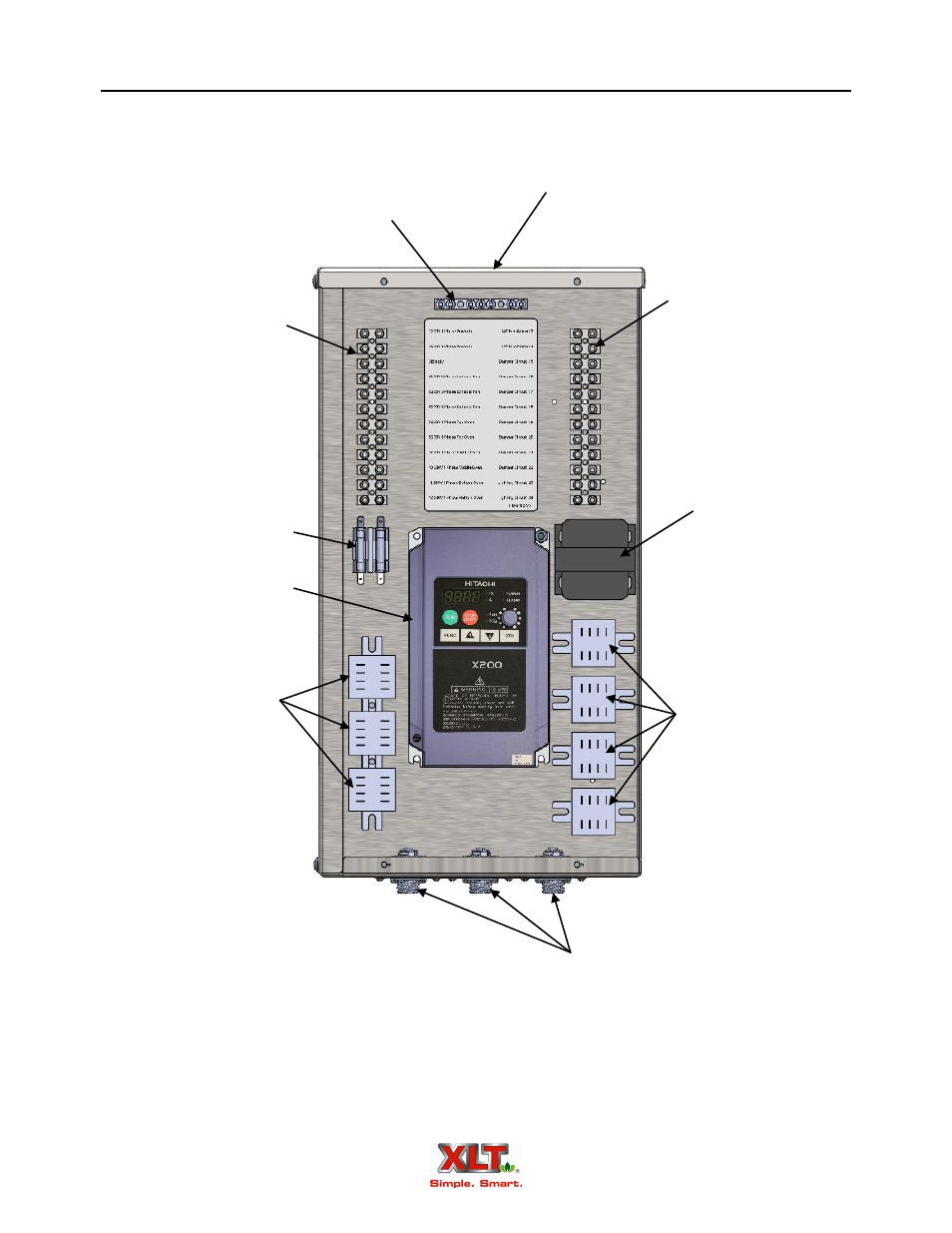

VFD Control Box - World
Oven/hood interface and power cords
connect to bottom of VFD control box
Wiring removed for clarity. See schematic for wiring details.
Terminal Block (TB)
Electrical supply, MUA and fire
suppression controls are wired
through top of VFD control box
Terminal Block (TB)
Fuses
VFD Controller
24V Transformer
Fire Suppression
Relays (optional)
MUA Damper
Relays (optional)
Grounding Block
Hood Electrical Requirements
