Hood Installation
Install Back Shroud Panel
Back Shroud Panel
Back
For models 1832, 2440, 3240, 3255 & 3855
Bottom Rail
Thumb Screw
Bottom Outside of Back Shroud Panel
Top Inside of Back Shroud Panel
Keyhole
Shoulder Bolt

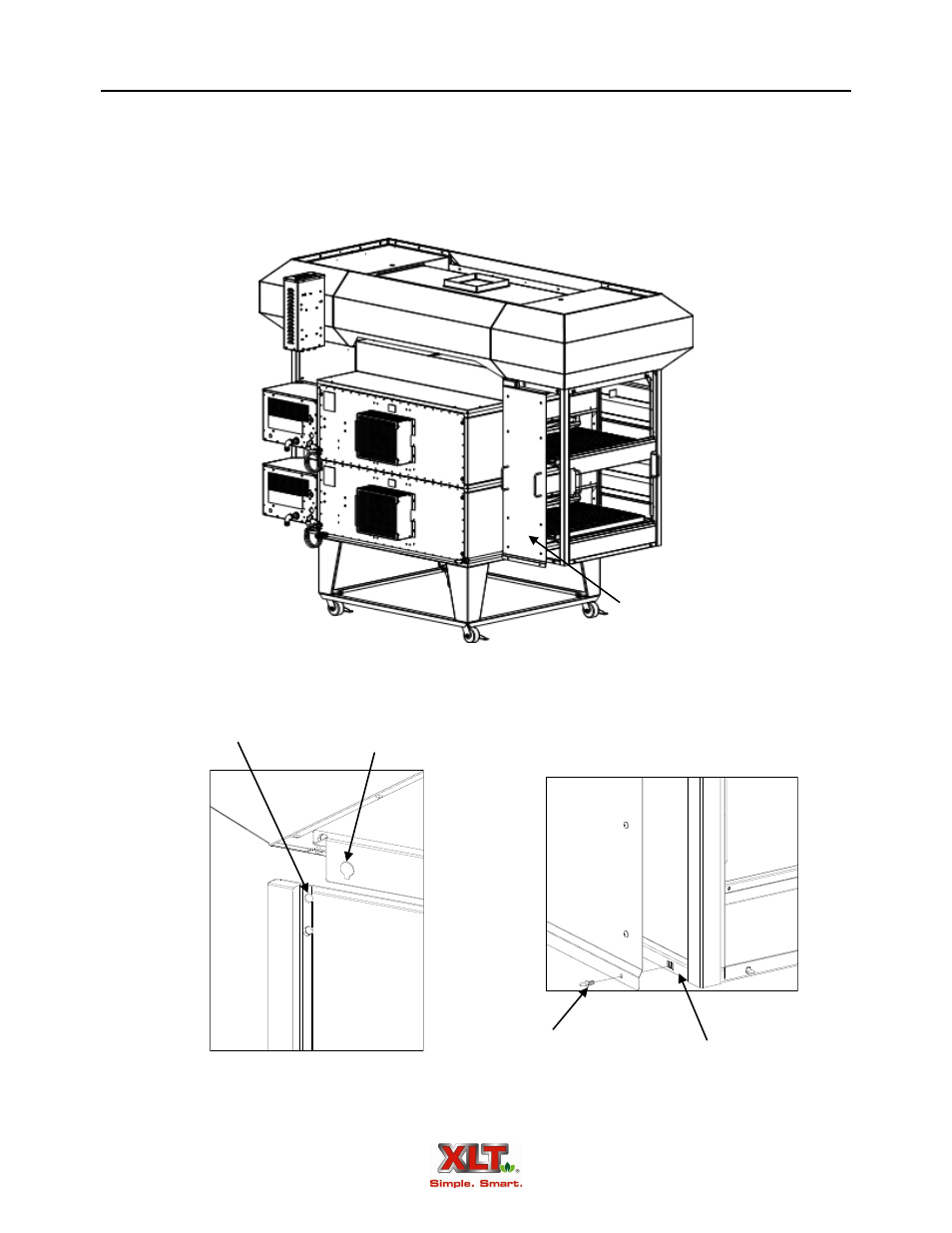

Line up shoulder bolts with keyholes in bracket. Allow panel to drop into place. Secure bottom of
Shroud Panel to bottom rail with two (2) thumb screws.
