Hood valance kit (optional) – XLT XD-9010B User Manual
Page 90

90

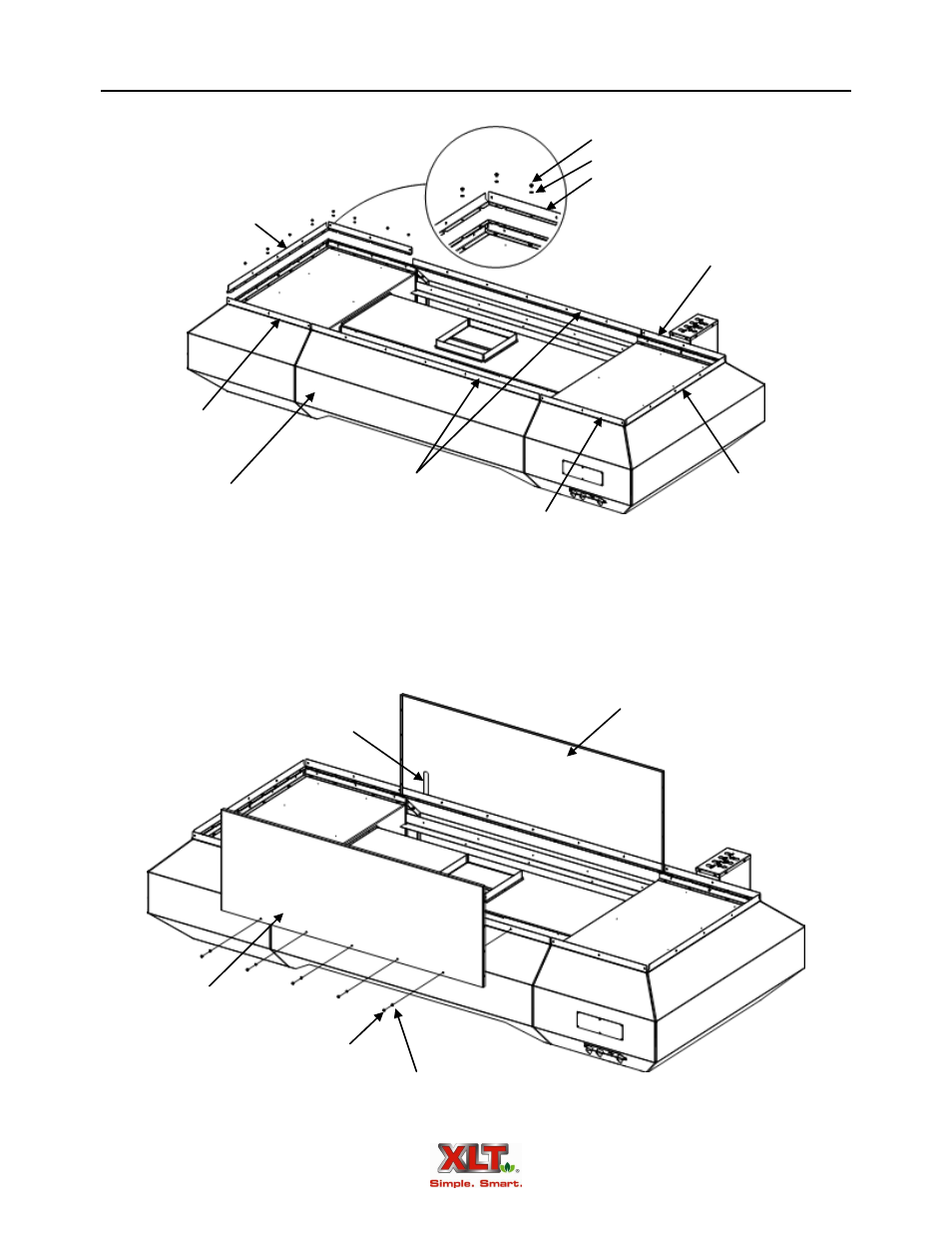

Install all brackets with through holes down and vertical flange facing away from center of hood.
Fasten to top of hood with screws & washers provided.
Front of Hood
10-24 Screws
Internal Tooth Lock Washers
Right Corner Bracket
End Bracket
Front/Back Brackets
End Bracket
Right Corner Bracket
Left Corner
Bracket
Left Corner Bracket
Install Valance Brackets
Hood Valance Kit (Optional)
Install Front & Back Panels
Install front &
back
panels with flanges toward center of hood. Fasten to brackets with screws &
washers provided.
Back Panel
Front Panel
10-24 Screws
Internal Tooth Lock Washers
Fire Suppression Slot
Ovens & Shrouds
removed for clarity
