Hood Electrical Requirements

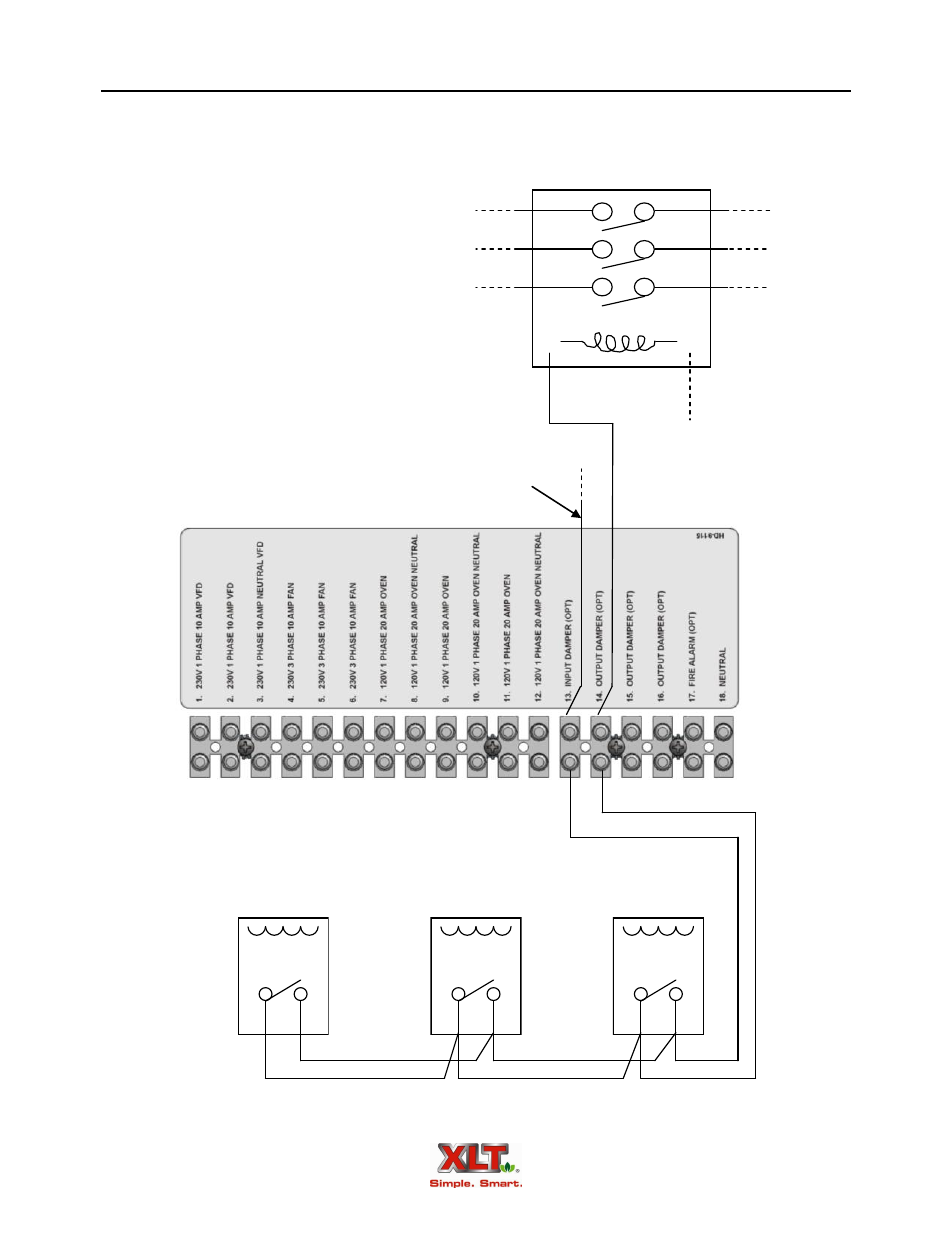

MUA Damper Relays - Single Output Configuration - Standard (optional)
A1
A2
MUA Unit Relay
(shown for reference only)
Supply from Breaker Panel
(Up to 10Amps - Determined by MUA)
Power In
Power Out
Neutral
R3
R2
R1
Relays located in VFD box
All wiring below the terminal
block to be done by XLT Ovens
and is shown for reference only.
Some wiring removed for clarity.
See schematic for wiring details.
