91

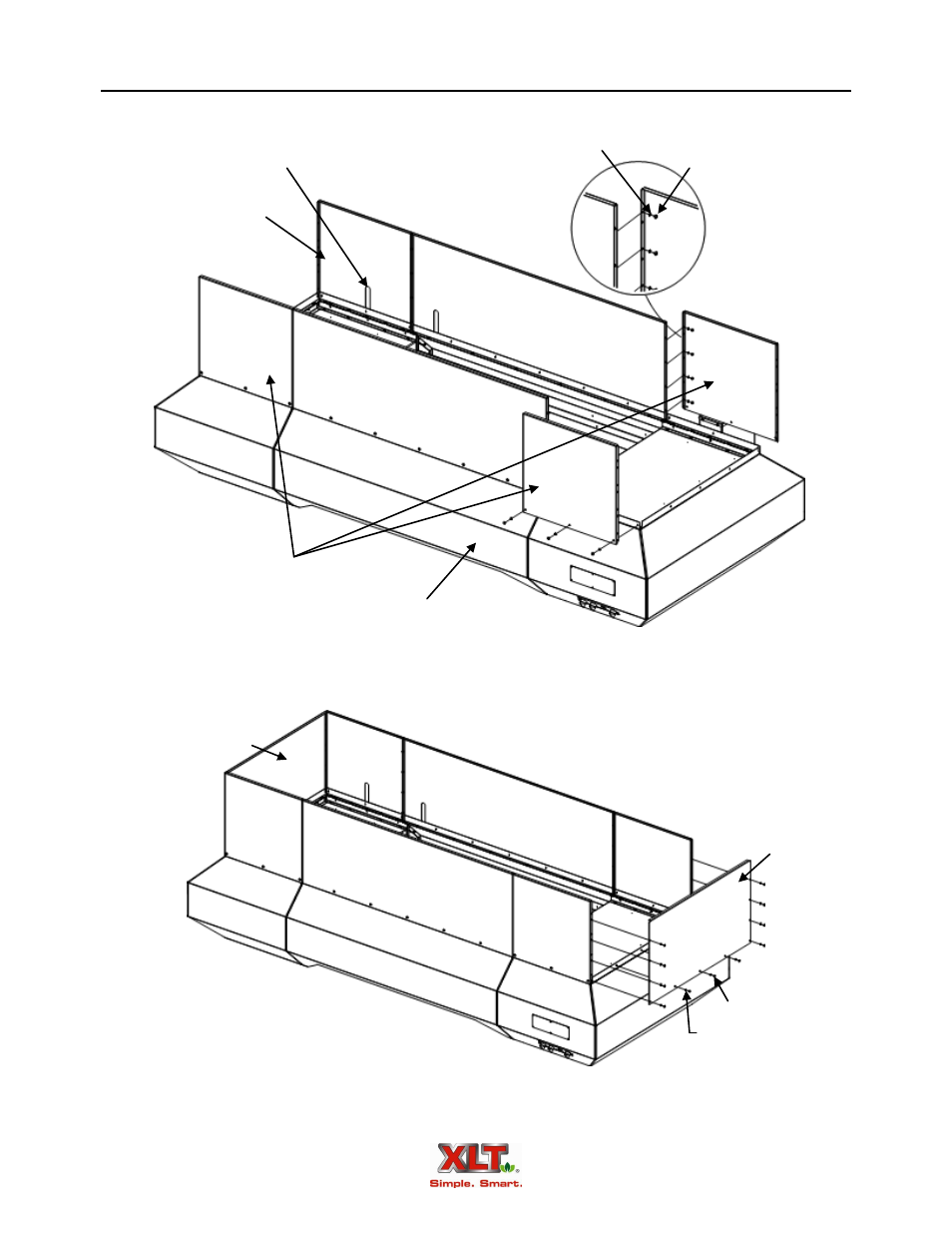

Install Corner Panels
Hood Valance Kit (Optional)
Internal Tooth Lock Washers
10-24 Screws
Corner Panels
Left Back
Corner Panel
Fire Suppression Slot
Front Of Hood
Install corner panels with flanges toward center of hood. Fasten to brackets, front, and back panels
with screws & washers provided.
Install End Panels
Install end panels with flanges toward center of hood. Fasten to brackets and corner panels with
screws & washers provided.
End Panel
End Panel
Internal Tooth Lock
Washers
10-24 Screws
