Restraint
Because all ovens are equipped with casters, all installations must be configured with a re-
straint to limit the movement of the oven without depending on the gas connector and quick-
disconnect device or its associated piping, and the electric power supply cord to limit the oven
movement. One (1) restraint kit, which includes two (2) eye bolts and a cable, is required for each
oven stack, regardless if used on a single, double, or triple configuration. The machine eye bolt
should be installed in the lowest hole of the back wall on the control end of the lowest oven in the
stack. The lag eye bolt must be installed into a structural member of a wall.
Upon completion of performing any service or cleaning functions that require removal of
the restraint, insure that it is correctly re-attached to the oven. In Australia, install the restraint ca-
ble in accordance with AS 5601, latest version.
Oven Installation

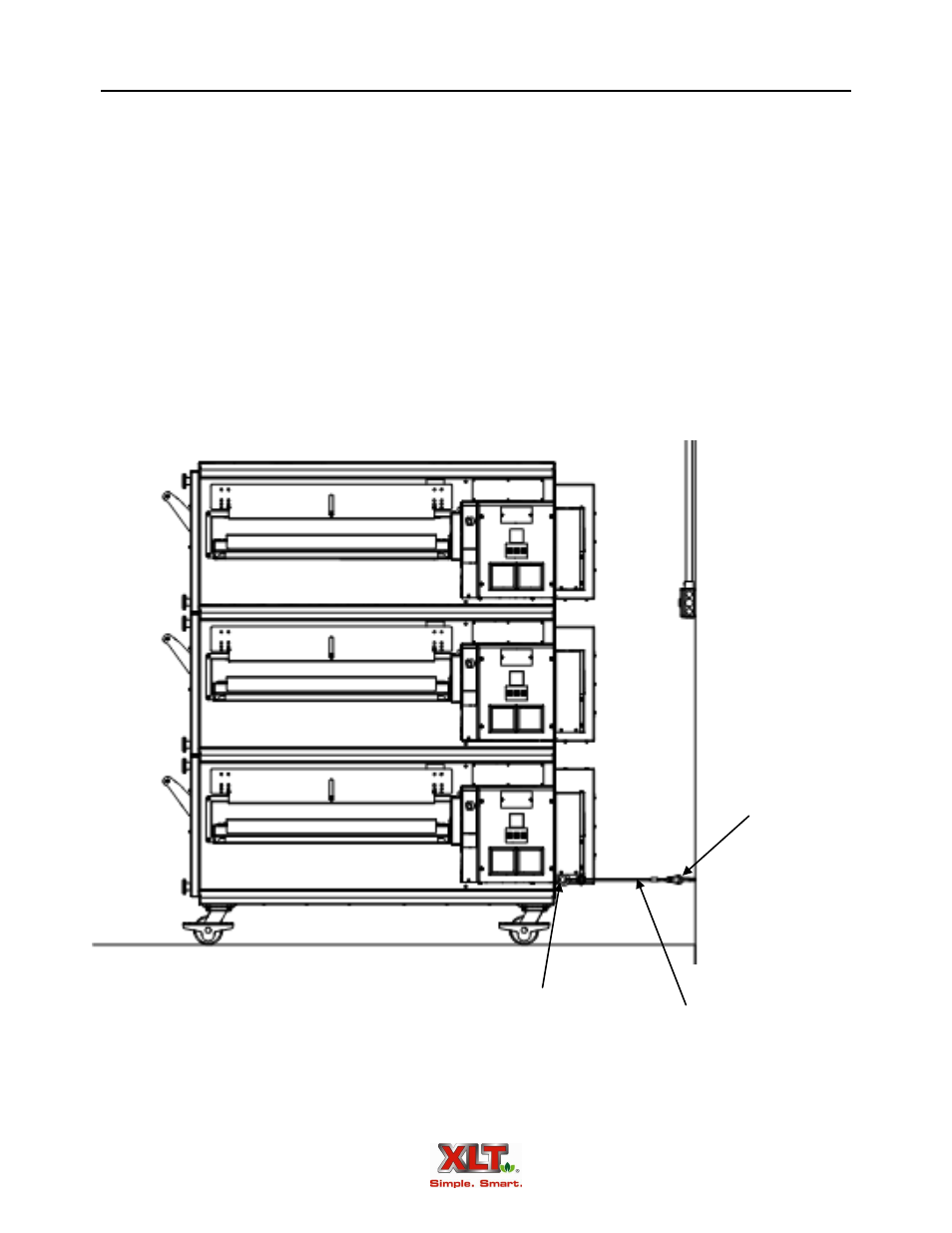

Machine Eye Bolt
Restraint Cable
(shown fully extended)
Lag Eye Bolt
