Prepare Ovens—Front Shroud Brackets
Hood Installation

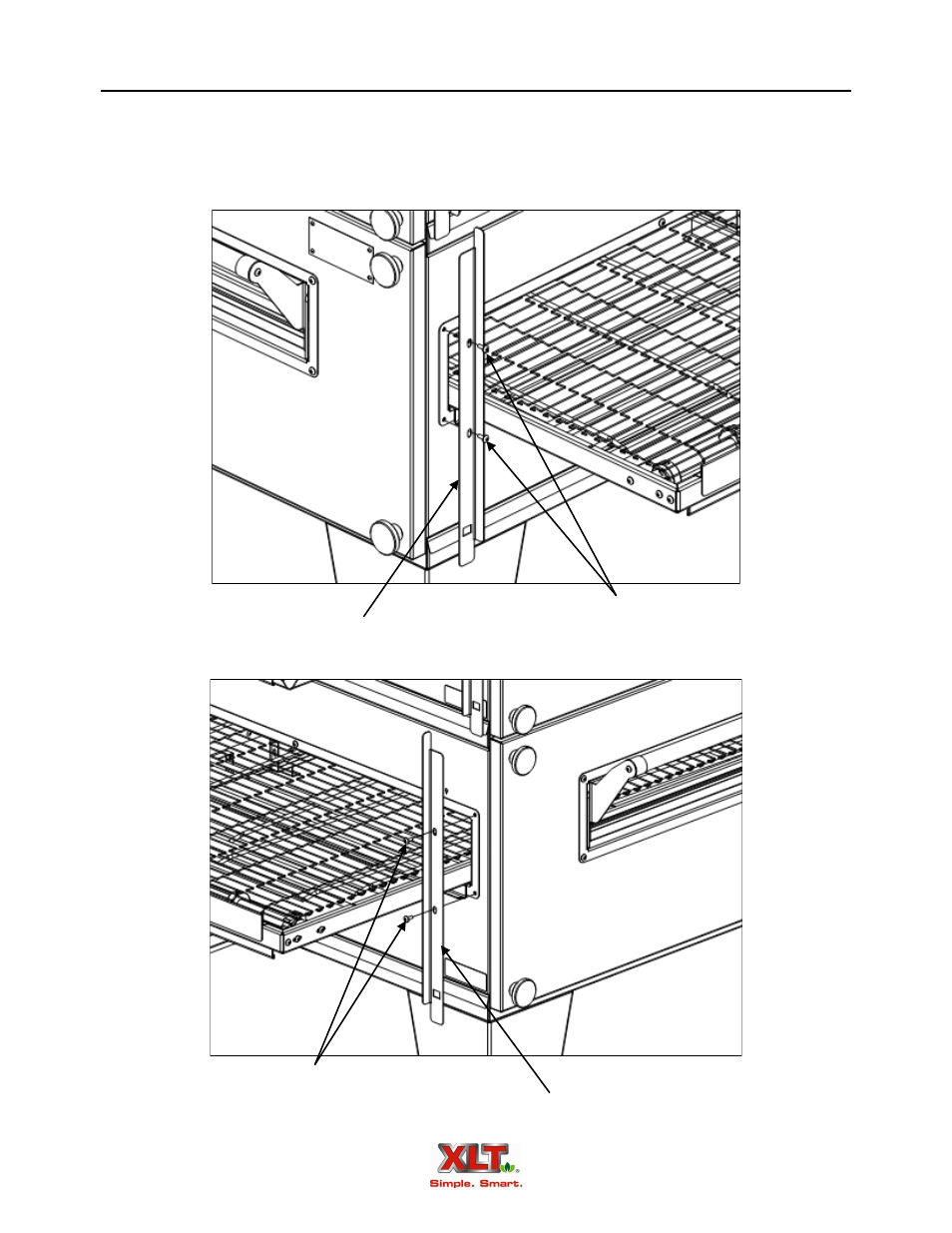

Install one (1) right and one (1) left front shroud bracket on each oven using the two (2) screws
already installed in conveyor opening bezel. Orientate brackets with square hole towards bottom
and flange toward center of oven.
Right Side
Conveyor Opening
Screws
Right Hand Shroud Bracket
Left Side Left Hand Shroud Bracket
Conveyor Opening
Screws
Front of
Oven
Front of
Oven
