XLT XD-9010B - Manual (Page 56)

56

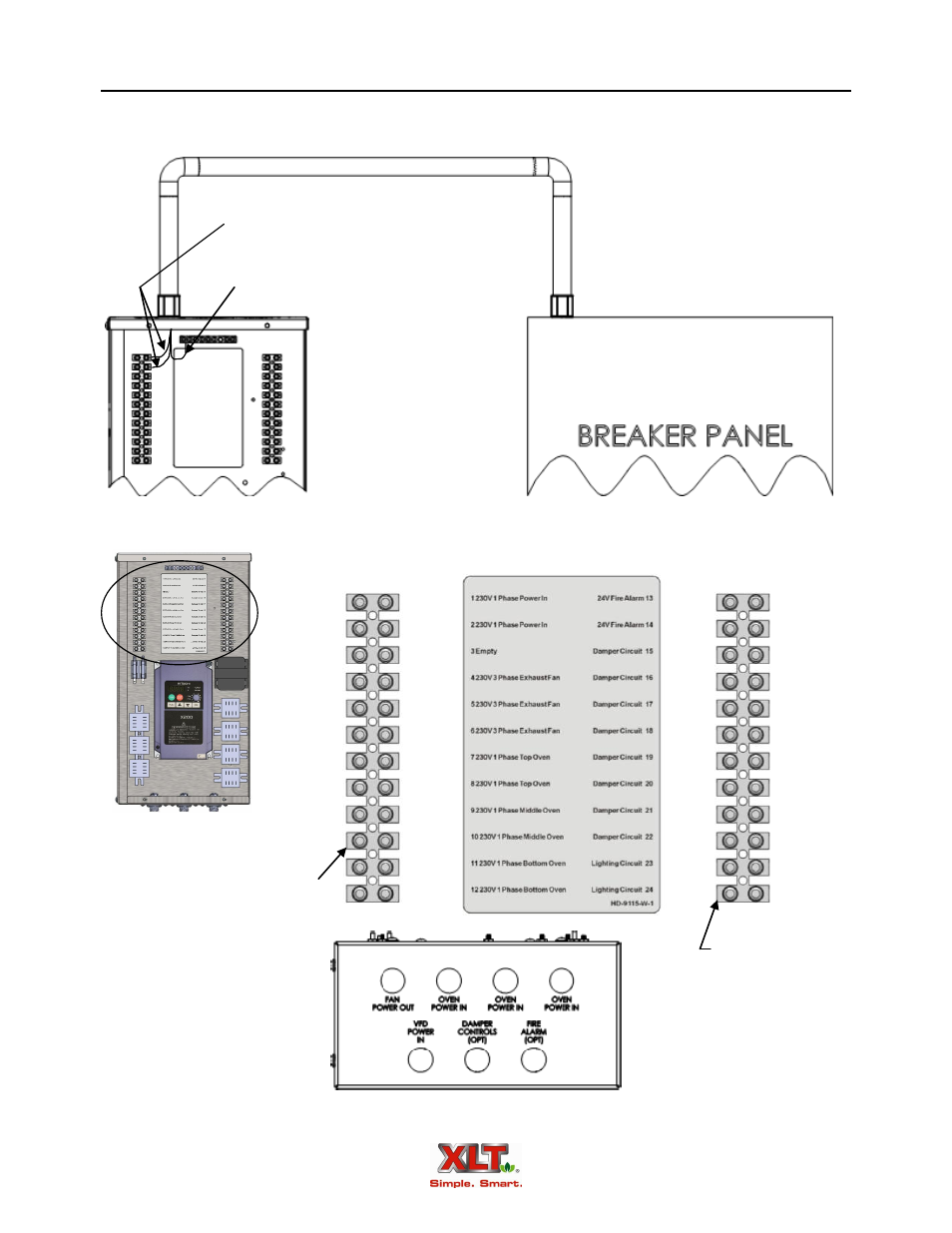

Power to VFD Controller - World
Hood Electrical Requirements
Top of Variable Frequency Drive (VFD) Box
230V 1 Phase 10 Amp
Terminal Block (TB)
Hot TB Positions 1&2
Ground
Conduit and breaker panel shown for reference only
Terminal Block (TB)
