Oven Assembly
Leg Angle
Leg
1. Flip the oven base upside down on the floor.
2. For single and double-stack configurations, attach the four legs to the bottom of the base with
the supplied 3/8" x 1" hex bolts, washers, and lock-washers. Do not fully tighten them at this
time. Leave them slightly loose so that the rest of the components can be more easily assem-
bled.
3. Place the four leg angles on top of the legs as shown. All of the leg angle holes should line up
with the holes in the bottom of the legs. Place two (2) washers on each leg at the inner corner
holes. These 2 washers are approximately the same thickness as the leg angles, and will keep
the caster level.
4. Attach the four casters to the legs as shown. The leg angles and washers are sandwiched be-
tween the casters and the leg base plates.
5. Tighten all fasteners.
6. Flip the base assembly over and ensure the insulation is placed properly.

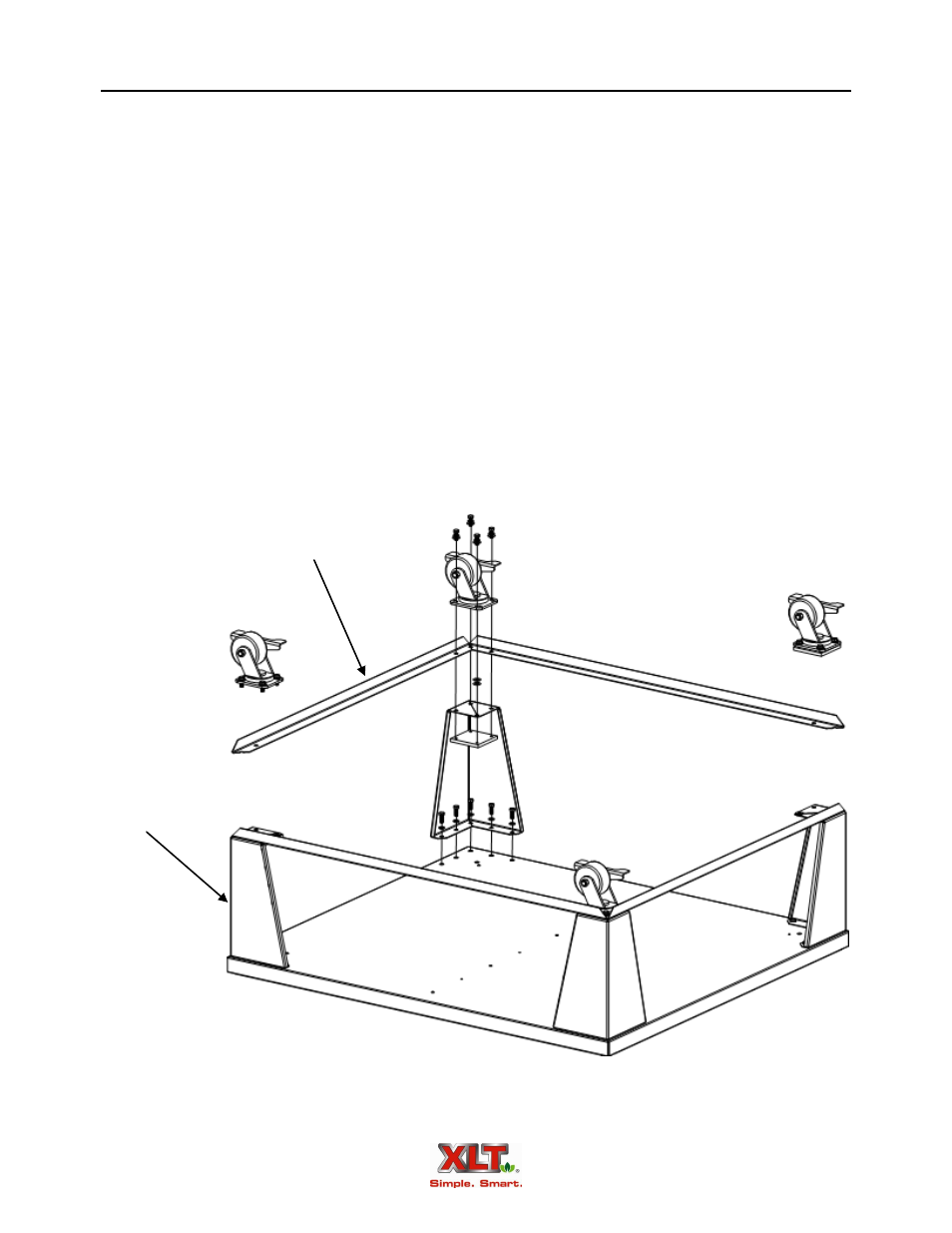

Base Assembly - Single & Double Stack
