8. Reinstall the conveyor opening flaps in each oven deck. A series of holes in the flaps allow
adjustment for different heights of food product.
9. Control box heat shields need to be installed on any multi-deck installation. For xx70 models,
they are required on both ends. To install, remove the four (4) control box screws under the
conveyor. Place the panel with the notch towards the bake chamber. Line up the slots with the
existing holes and replace the screws.

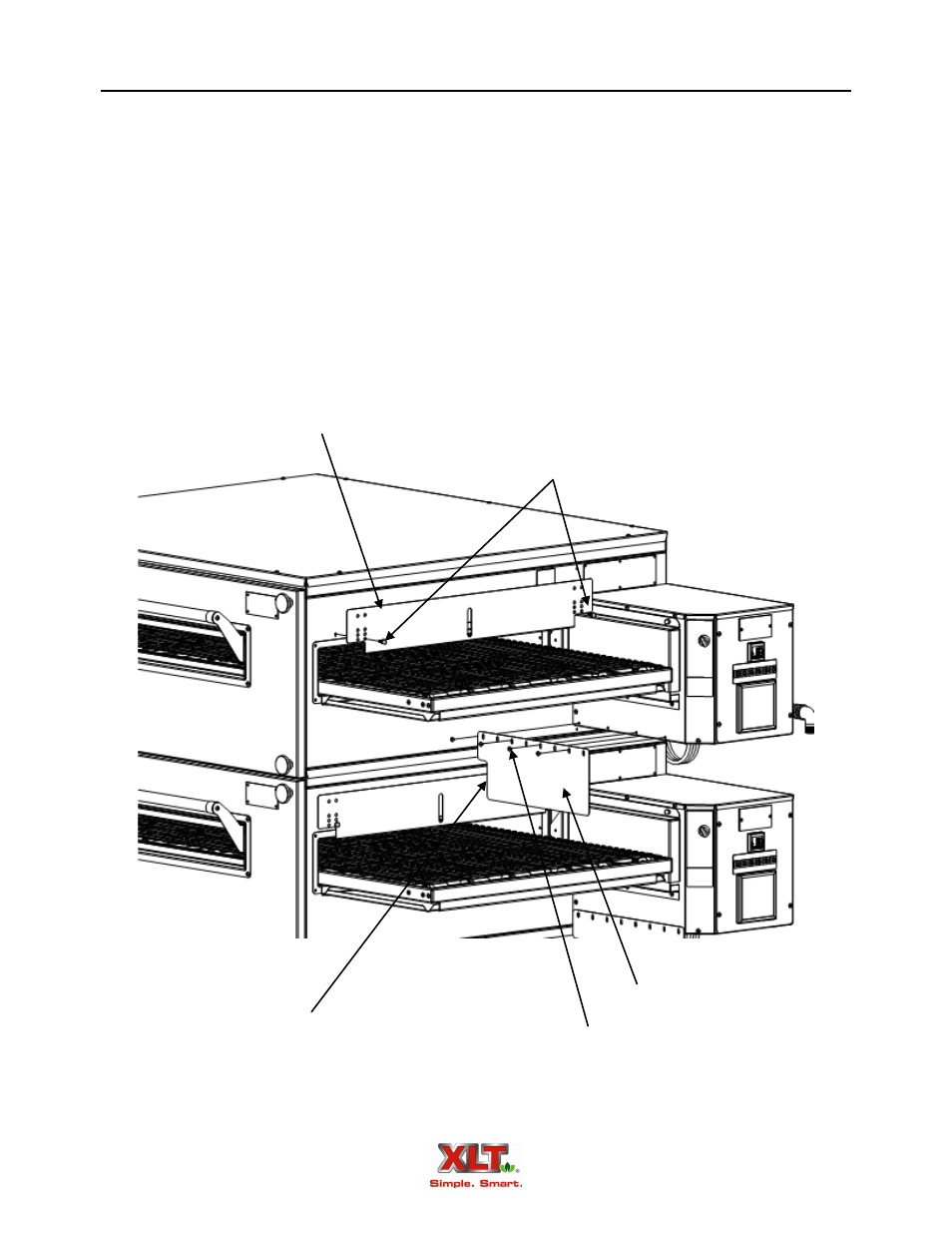

Oven Assembly
Conveyor Opening Flap
Thumb Screws
Lower Control Box Plate
Control Box Screws
Lower Control Box Plate Notch
Stacking the Ovens
