78

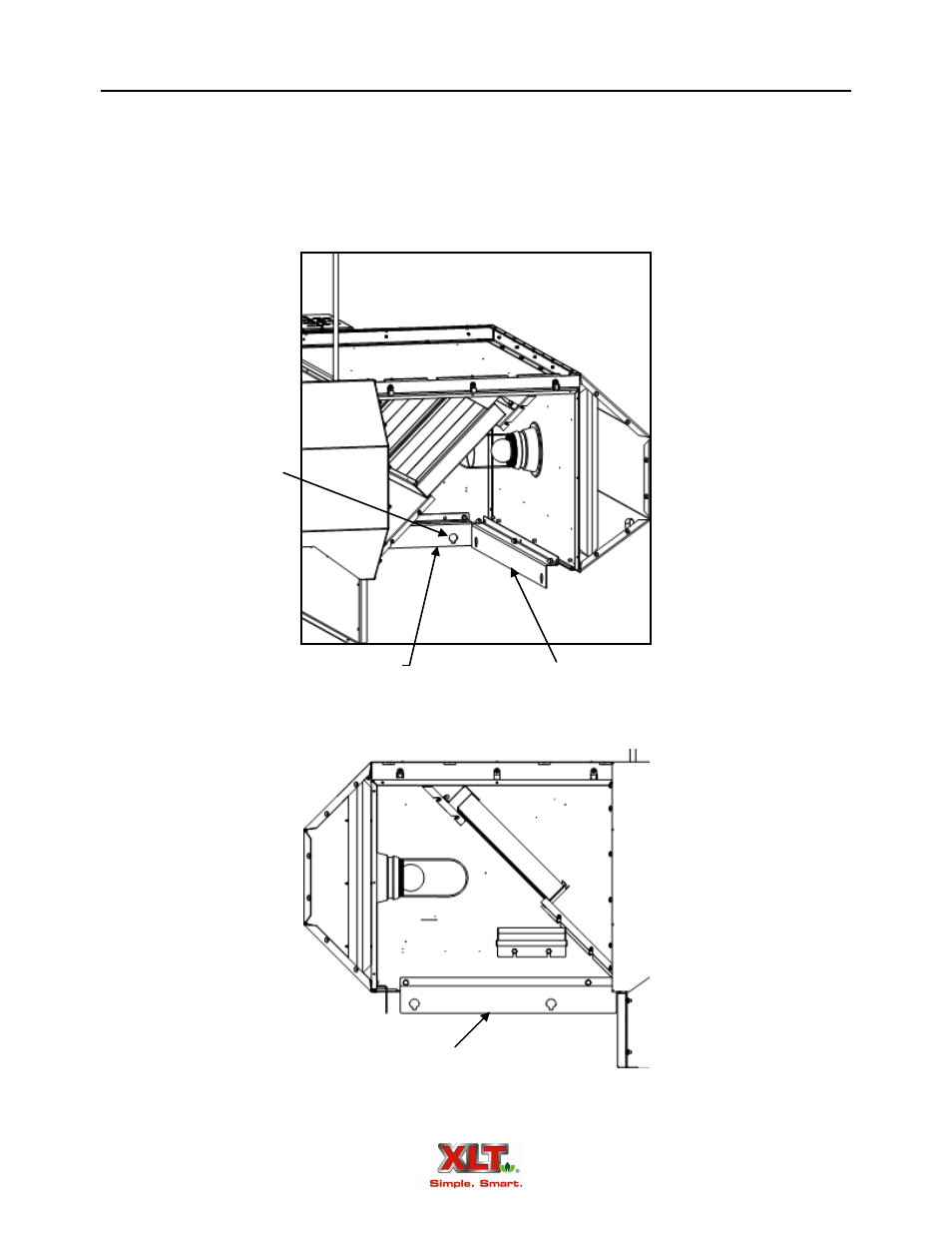

Hood Installation
End Shroud
Hanging Bracket
Front/ Back Shroud Hanging Bracket
( Back right shown, both front brackets similar)
Left end shown, right end similar. Some parts removed for clarity
Install Shroud Hanging Brackets
Install the end and front/back shroud hanging brackets with acorn nuts (provided). End brackets
require three (3) acorn nuts and front/back brackets require (2) acorn nuts. Flange with keyholes
should protrude into filter area.
Keyhole
Left Back Shroud Hanging Bracket
Note: Keyholes are offset for this bracket only
