XLT XD-9010B - Manual (Page 59)

59

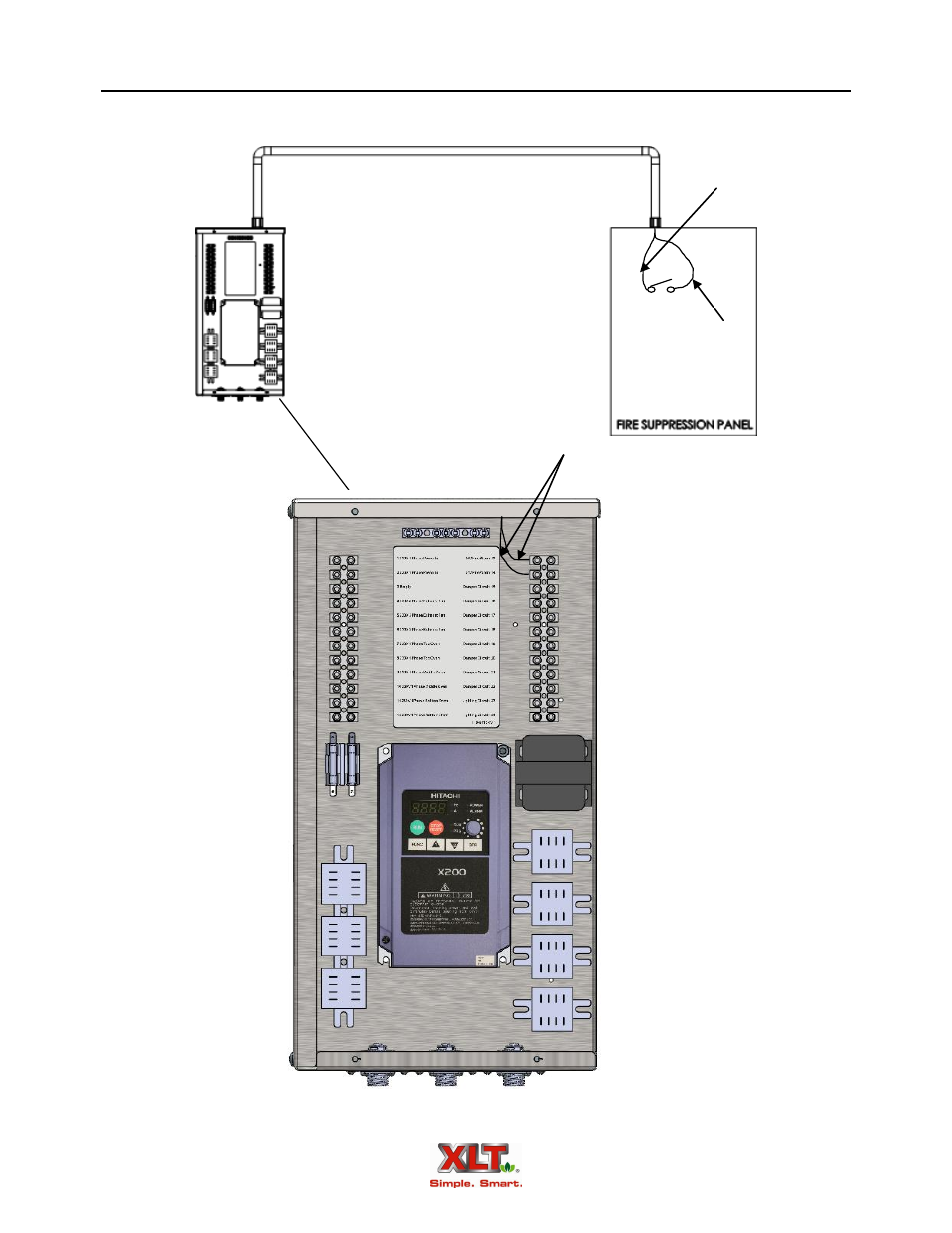

Hood Electrical Requirements
Fire Alarm Relay - World (optional)
Fire Alarm Switch
to TB Position 14
120VAC Supply
To TB Position 13
Conduit, breaker panel and fire suppression panel shown for reference only.
B
A
B
B
A
B
A
B
A
Signal in from fire suppression panel
TB Positions 13 & 14
All wiring below the terminal
blocks to be done by XLT Ovens.
Some wiring has been removed for
clarity. See schematic for wiring
details.
