XLT XD-9010B User Manual

Page 11

background image

11

For Models 1832, 2440, 3240, 3255 & 3855

25.24

[641]

24.88

[632]

12.35

[314]

18.91

[480]

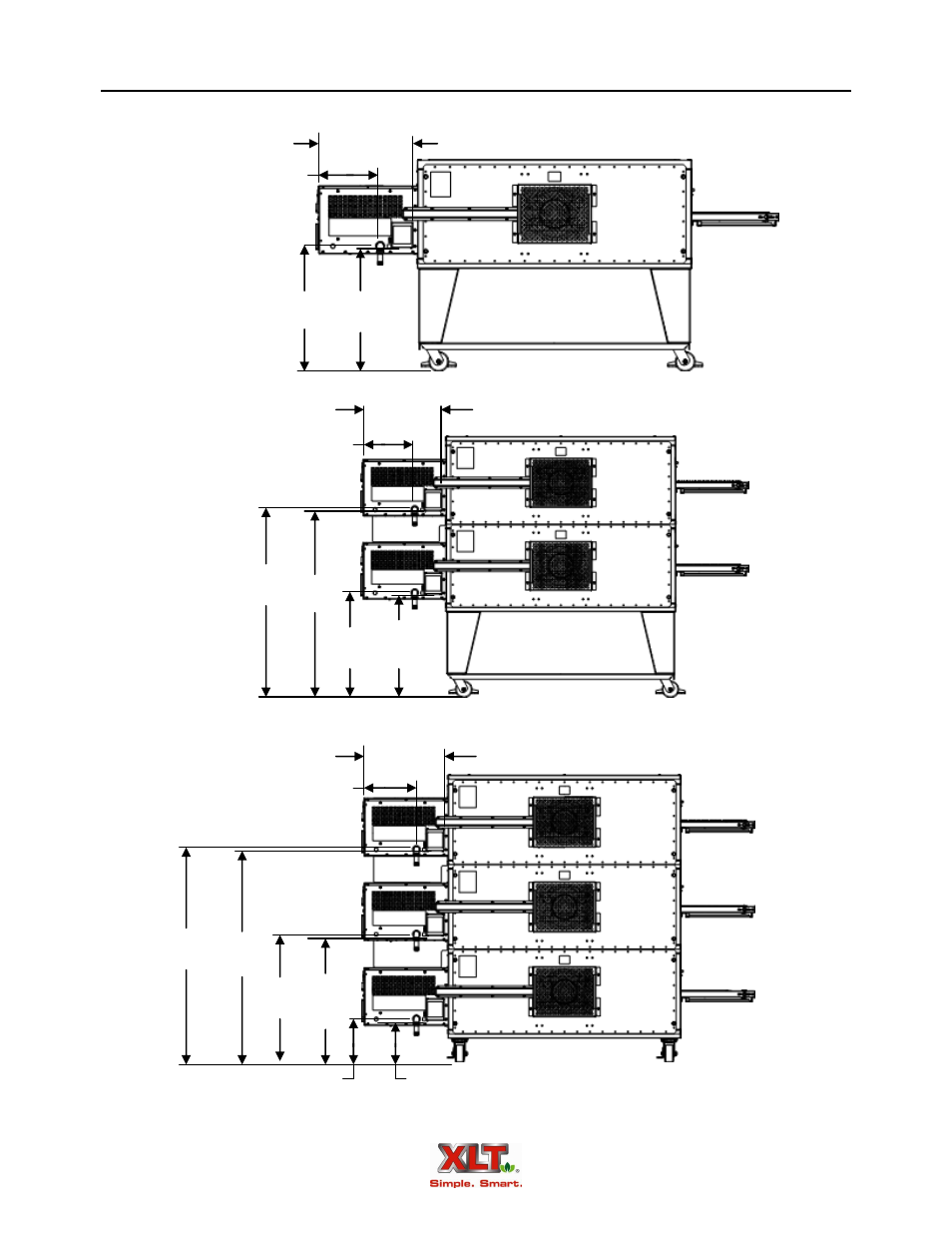

Gas & Electrical Connection Dimensions - Australian & World Ovens

10.21

[259]

9.85

[250]

30.19

[767]

29.83

[758]

50.18

[1275]

49.82

[1265]

12.35

[314]

18.91

[480]

25.24

[641]

24.88

[632]

45.23

[1149]

44.87

[1140]

12.35

[314]

18.91

[480]

NOTE: All dimensions in inches [mm].
