Hood Installation
Prepare Ovens - Control Box Side Closeout
Right Hand Control
Box Side Closeout

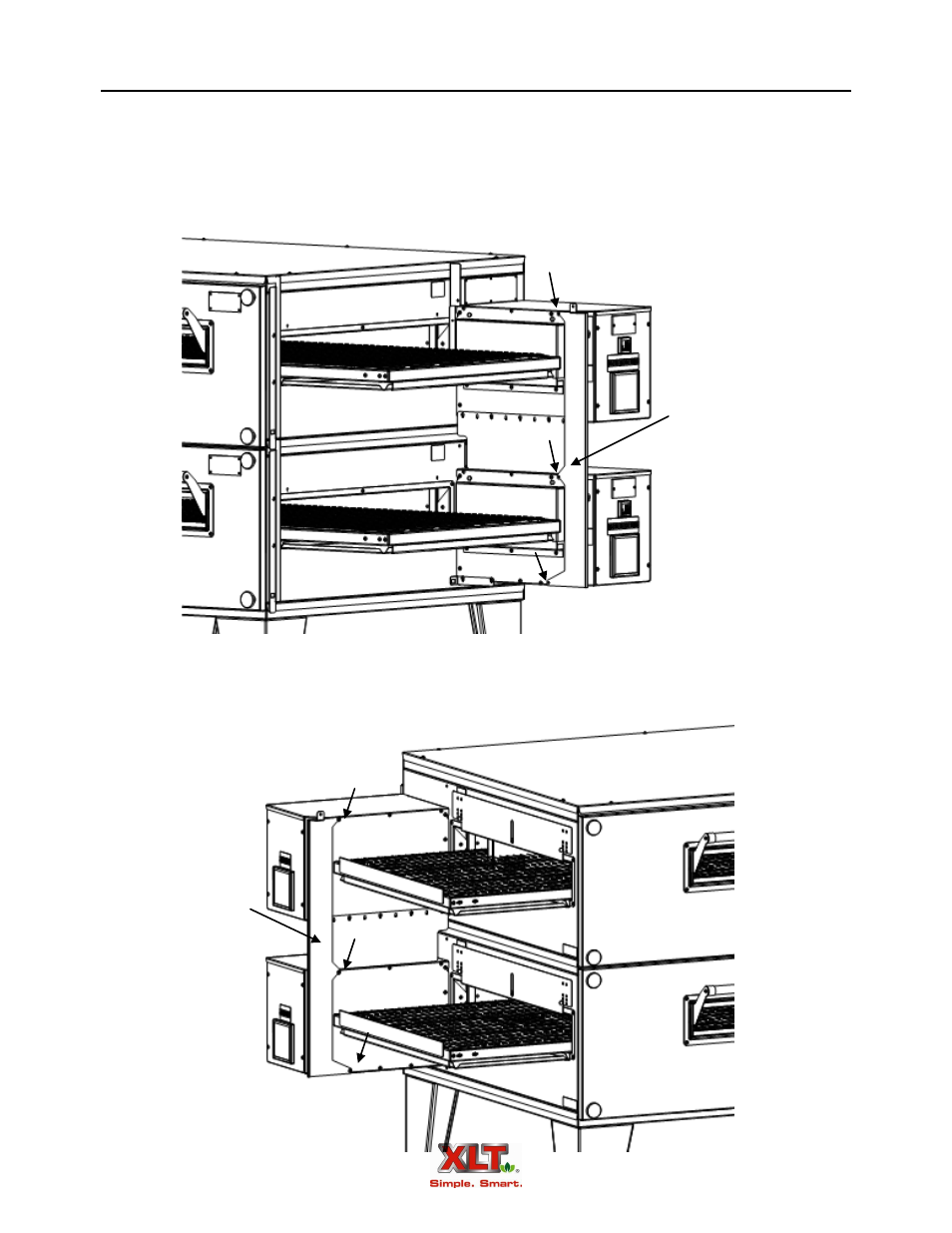

Install right hand control box side closeout using screws already installed on control boxes, at loca-
tions shown with arrows. Upper flange of closeout to face front of oven. (double stack shown,
brackets for single and triple will look slightly different)
Right Hand - For All Models
Left Hand - For Models 3270 & 3870
Left Hand Control
Box Side Closeout
Install left hand control box side closeout by same method as right side.
