Hood Installation
Prepare Hood

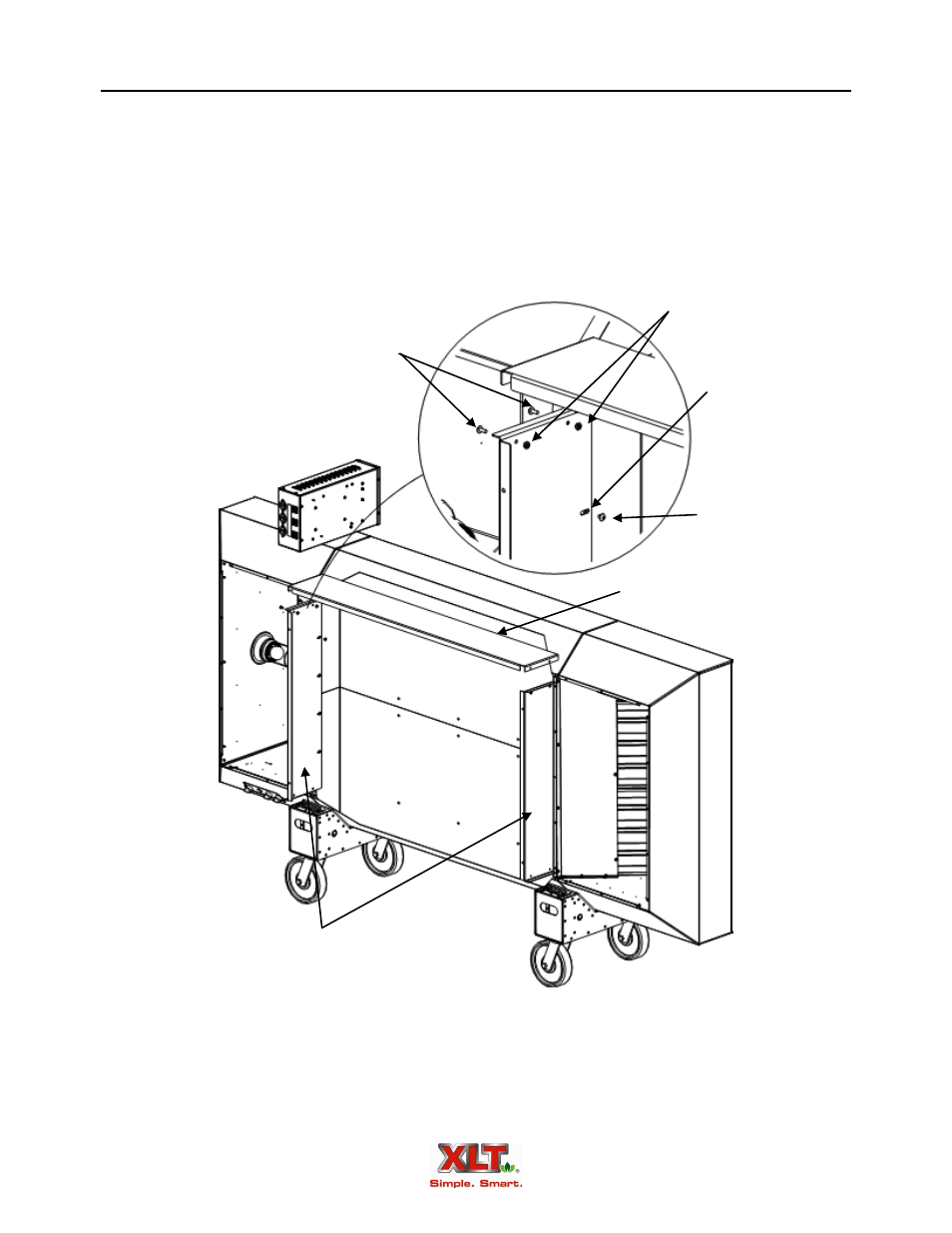

Attach inside filler panels using eight (8) 10-24 x 1/4” screws (provided). Tighten screws in ad-
justment slots with panels pushed as far as possible toward hood.
Attach back panel stiffener to inside filler panels using 10-24 x 1/2” Screws and Nuts, two (2) each
end (provided). Install so that the screw heads are inside filter areas.
10-24 x 1/4”
Screws
10-24 x 1/2” Screws
10-24 Nuts
Adjustment Slots
Inside Filler Panels
Back Panel Stiffener
Illustrations shown with AVI hood on cart, same instructions apply when AVI hood is crate
shipped.
