Hood installation, Install shroud panels - front and ends – XLT XD-9010B User Manual
Page 81

81
Front
Front Shroud Panels (with Crumb Tray Doors)
Size Specific
Shroud Panel
Hood Installation
Line up shoulder bolts with keyholes in bracket. Allow panel to drop into place. Secure bottom of
Shroud Panel to bottom rail with two (2) thumb screws.
Keyhole
Shoulder Bolt
Open crumb tray doors located in front
shroud panels & verify crumb trays are
easily removable.
Adjust All-thread supporting hood from
ceiling joists as needed for best fit.

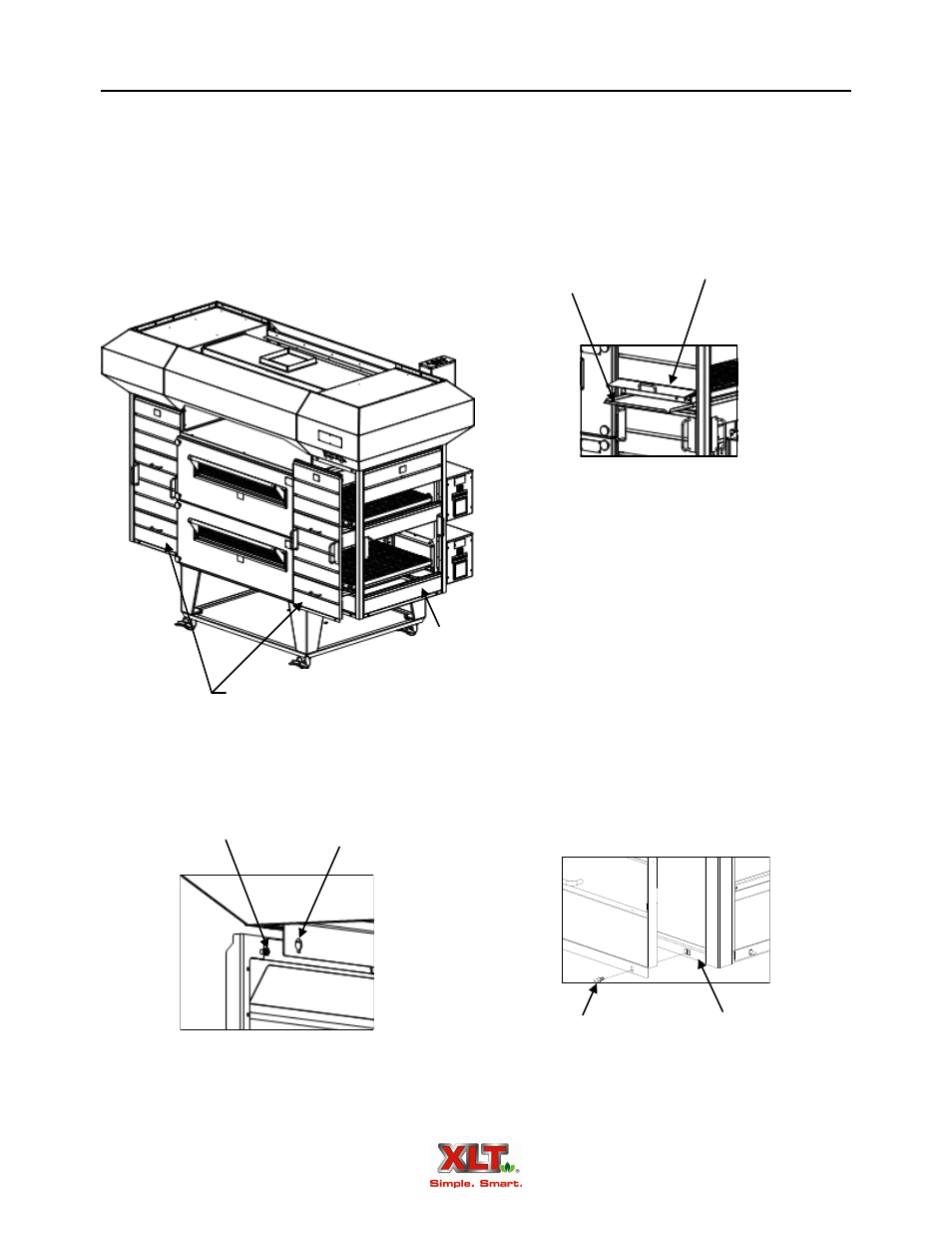

Install Shroud Panels - Front and Ends
End load/end unload shown. Other configurations available.
Top inside of Shroud Panel
(applies to all Shroud Panels)
Bottom Outside of Shroud Panel
(applies to all Shroud Panels)
Thumb Screw
Bottom Rail
Crumb Tray Door
Crumb Tray
